esviesa.lt | Etesian S LED IK05 IP40 UGR

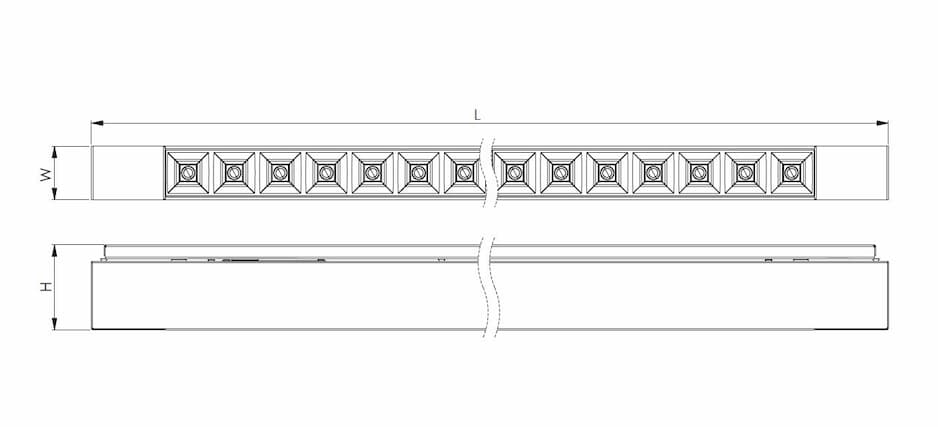

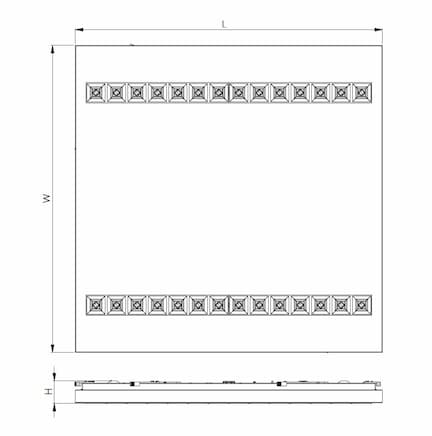

Name	Length, mm	Width, mm	Height, mm	LED lifetime, h	Output, lm	Power, W	Efficacy, lm/W	CRI (Ra)	CCT, K	Weight, kg	UGR index

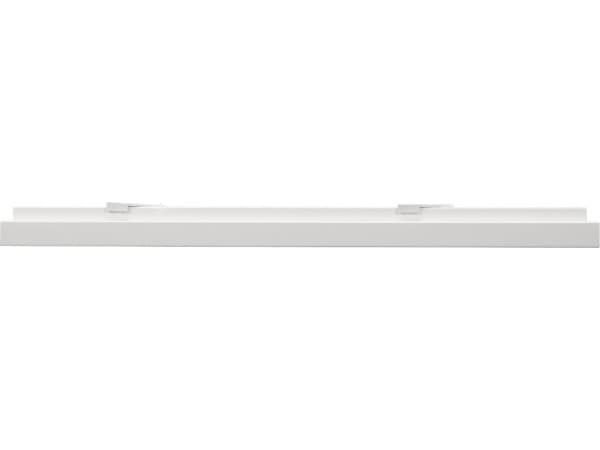

Etesian S LED2x1500 G966 T840 WMC	600	600	43	100000/L80B10	2920	17.6	166	80+	4000	4.2	≤16
Etesian S LED2x1800 G967 T840 WMC	600	600	43	100000/L80B10	3583	21.9	164	80+	4000	4.2	≤16
Etesian S LED2x2150 G968 T840 WMC	600	600	43	100000/L80B10	4223	25.9	163	80+	4000	4.2	≤16

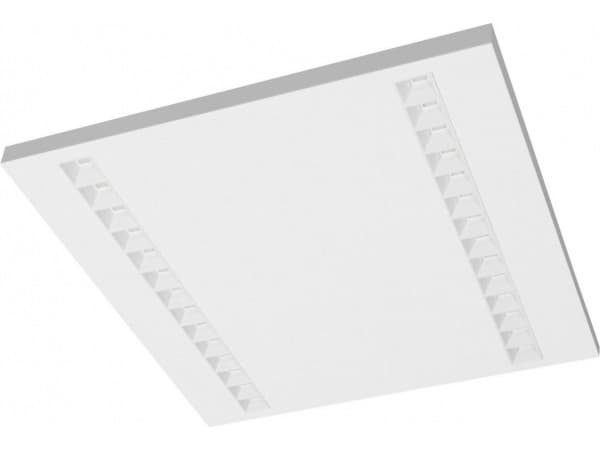

Etesian S LED2x2450 G969 T840 WMC	600	600	43	100000/L80B10	4867	30.8	158	80+	4000	4.2	≤16

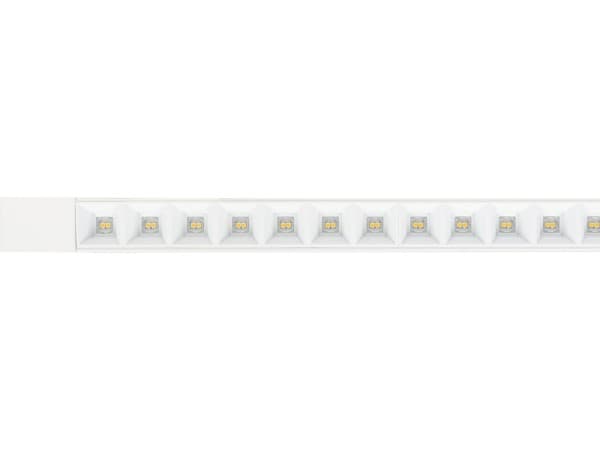

Etesian S LED1x1500 G970 T840 WMC LO1	687	47	74	100000/L80B10	1460	9.7	151	80+	4000	1.5	≤16
Etesian S LED1x1800 G971 T840 WMC LO2	687	47	74	100000/L80B10	1791	11.5	156	80+	4000	1.5	≤16
Etesian S LED1x2150 G972 T840 WMC LO3	687	47	74	100000/L80B10	2111	13.8	153	80+	4000	1.5	≤16
Etesian S LED1x2450 G973 T840 WMC LO4	687	47	74	100000/L80B10	2433	16.3	149	80+	4000	1.5	≤16
Etesian S LED1x2950 G974 T840 WMC LO1	1245	47	74	100000/L80B10	2920	17.6	166	80+	4000	2.7	≤16
Etesian S LED1x3600 G975 T840 WMC LO2	1245	47	74	100000/L80B10	3583	21.9	164	80+	4000	2.7	≤16
Etesian S LED1x4250 G976 T840 WMC LO3	1245	47	74	100000/L80B10	4223	25.9	163	80+	4000	2.7	≤16
Etesian S LED1x4900 G977 T840 WMC LO4	1245	47	74	100000/L80B10	4867	30.8	158	80+	4000	2.7	≤16
Etesian S LED1x3650 G978 T840 WMC LO1	1524	47	74	100000/L80B10	3650	21.7	168	80+	4000	3.3	≤16
Etesian S LED1x4500 G979 T840 WMC LO2	1524	47	74	100000/L80B10	4479	26.8	167	80+	4000	3.3	≤16
Etesian S LED1x5300 G980 T840 WMC LO3	1524	47	74	100000/L80B10	5278	32.0	165	80+	4000	3.3	≤16

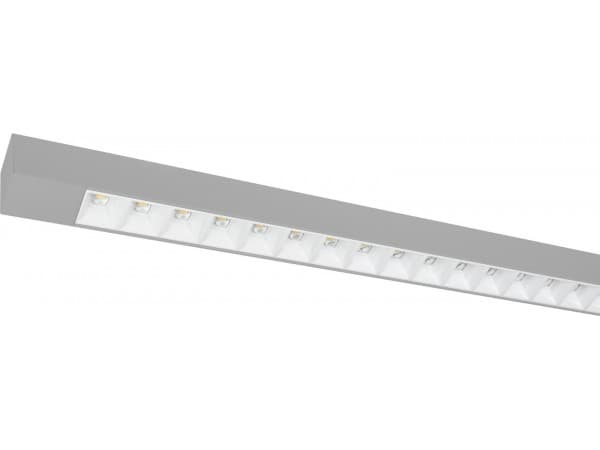

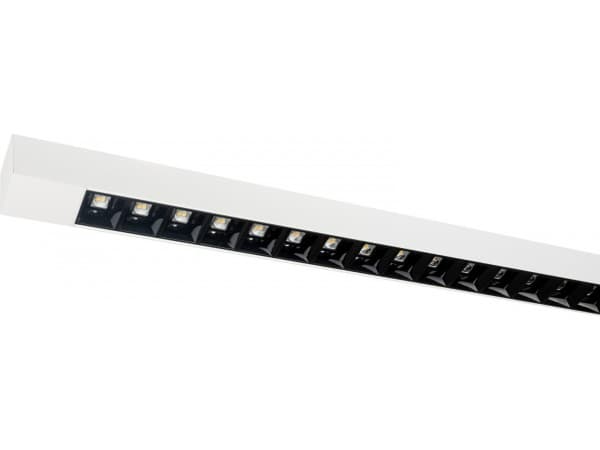

Etesian S LED1x6150 G981 T840 WMC LO4	1524	47	74	100000/L80B10	6147	37.8	163	80+	4000	3.3	≤16
Etesian S LED2x1350 G966 T840 BMC	600	600	43	100000/L80B10	2631	17.6	149	80+	4000	4.2	≤16
Etesian S LED2x1700 G967 T840 BMC	600	600	43	100000/L80B10	3229	21.9	147	80+	4000	4.2	≤16
Etesian S LED2x1950 G968 T840 BMC	600	600	43	100000/L80B10	3805	25.9	147	80+	4000	4.2	≤16
Etesian S LED2x2250 G969 T840 BMC	600	600	43	100000/L80B10	4386	30.8	142	80+	4000	4.2	≤16
Etesian S LED1x1350 G970 T840 BMC LO1	687	47	74	100000/L80B10	1316	9.7	136	80+	4000	1.5	≤16
Etesian S LED1x1700 G971 T840 BMC LO2	687	47	74	100000/L80B10	1614	11.5	140	80+	4000	1.5	≤16
Etesian S LED1x1950 G972 T840 BMC LO3	687	47	74	100000/L80B10	1903	13.8	138	80+	4000	1.5	≤16
Etesian S LED1x2250 G973 T840 BMC LO4	687	47	74	100000/L80B10	2193	16.3	135	80+	4000	1.5	≤16
Etesian S LED1x2700 G974 T840 BMC LO1	1245	47	74	100000/L80B10	2631	17.6	149	80+	4000	2.7	≤16
Etesian S LED1x3350 G975 T840 BMC LO2	1245	47	74	100000/L80B10	3229	21.9	147	80+	4000	2.7	≤16
Etesian S LED1x3900 G976 T840 BMC LO3	1245	47	74	100000/L80B10	3805	25.9	147	80+	4000	2.7	≤16
Etesian S LED1x4500 G977 T840 BMC LO4	1245	47	74	100000/L80B10	4386	30.8	142	80+	4000	2.7	≤16
Etesian S LED1x3400 G978 T840 BMC LO1	1524	47	74	100000/L80B10	3289	21.7	152	80+	4000	3.3	≤16
Etesian S LED1x4150 G979 T840 BMC LO2	1524	47	74	100000/L80B10	4036	26.8	151	80+	4000	3.3	≤16
Etesian S LED1x4900 G980 T840 BMC LO3	1524	47	74	100000/L80B10	4756	32.0	149	80+	4000	3.3	≤16
Etesian S LED1x5700 G981 T840 BMC LO4	1524	47	74	100000/L80B10	5539	37.8	147	80+	4000	3.3	≤16
Etesian S LED2x1500 G966 T840 MGC	600	600	43	100000/L80B10	3048	17.6	173	80+	4000	3.3	≤16
Etesian S LED2x1800 G967 T840 MGC	600	600	43	100000/L80B10	3740	21.9	171	80+	4000	3.3	≤16
Etesian S LED2x2150 G968 T840 MGC	600	600	43	100000/L80B10	4408	25.9	170	80+	4000	3.3	≤16
Etesian S LED2x2450 G969 T840 MGC	600	600	43	100000/L80B10	5081	30.8	165	80+	4000	3.3	≤16
Etesian S LED1x1500 G970 T840 MGC LO1	687	47	74	100000/L80B10	1524	9.7	157	80+	4000	3.3	≤16
Etesian S LED1x1800 G971 T840 MGC LO2	687	47	74	100000/L80B10	1870	11.5	163	80+	4000	3.3	≤16
Etesian S LED1x2150 G972 T840 MGC LO3	687	47	74	100000/L80B10	2204	13.8	160	80+	4000	3.3	≤16
Etesian S LED1x2450 G973 T840 MGC LO4	687	47	74	100000/L80B10	2540	16.3	156	80+	4000	3.3	≤16
Etesian S LED1x2950 G974 T840 MGC LO1	1245	47	74	100000/L80B10	3048	17.6	173	80+	4000	3.3	≤16
Etesian S LED1x3600 G975 T840 MGC LO2	1245	47	74	100000/L80B10	3740	21.9	171	80+	4000	3.3	≤16
Etesian S LED1x4250 G976 T840 MGC LO3	1245	47	74	100000/L80B10	4408	25.9	170	80+	4000	3.3	≤16
Etesian S LED1x4900 G977 T840 MGC LO4	1245	47	74	100000/L80B10	5081	30.8	165	80+	4000	3.3	≤16
Etesian S LED1x3650 G978 T840 MGC LO1	1524	47	74	100000/L80B10	3810	21.7	176	80+	4000	3.3	≤16
Etesian S LED1x4500 G979 T840 MGC LO2	1524	47	74	100000/L80B10	4676	26.8	174	80+	4000	3.3	≤16
Etesian S LED1x5300 G980 T840 MGC LO3	1524	47	74	100000/L80B10	5511	32.0	172	80+	4000	3.3	≤16
Etesian S LED1x6150 G981 T840 MGC LO4	1524	47	74	100000/L80B10	6417	37.8	170	80+	4000	3.3	≤16
Etesian S LED2x1500 G966 T840 MMC	600	600	43	100000/L80B10	2984	17.6	170	80+	4000	3.3	≤16
Etesian S LED2x1800 G967 T840 MMC	600	600	43	100000/L80B10	3662	21.9	167	80+	4000	3.3	≤16
Etesian S LED2x2150 G968 T840 MMC	600	600	43	100000/L80B10	4316	25.9	167	80+	4000	3.3	≤16
Etesian S LED2x2450 G969 T840 MMC	600	600	43	100000/L80B10	4974	30.8	161	80+	4000	3.3	≤16
Etesian S LED1x1500 G970 T840 MMC LO1	687	47	74	100000/L80B10	1492	9.7	154	80+	4000	3.3	≤16
Etesian S LED1x1800 G971 T840 MMC LO2	687	47	74	100000/L80B10	1831	11.5	159	80+	4000	3.3	≤16
Etesian S LED1x2150 G972 T840 MMC LO3	687	47	74	100000/L80B10	2158	13.8	156	80+	4000	3.3	≤16
Etesian S LED1x2450 G973 T840 MMC LO4	687	47	74	100000/L80B10	2487	16.3	153	80+	4000	3.3	≤16
Etesian S LED1x2950 G974 T840 MMC LO1	1245	47	74	100000/L80B10	2984	17.6	170	80+	4000	3.3	≤16
Etesian S LED1x3600 G975 T840 MMC LO2	1245	47	74	100000/L80B10	3662	21.9	167	80+	4000	3.3	≤16
Etesian S LED1x4250 G976 T840 MMC LO3	1245	47	74	100000/L80B10	4316	25.9	167	80+	4000	3.3	≤16
Etesian S LED1x4900 G977 T840 MMC LO4	1245	47	74	100000/L80B10	4974	30.8	161	80+	4000	3.3	≤16
Etesian S LED1x3650 G978 T840 MMC LO1	1524	47	74	100000/L80B10	3730	21.7	172	80+	4000	3.3	≤16
Etesian S LED1x4500 G979 T840 MMC LO2	1524	47	74	100000/L80B10	4577	26.8	171	80+	4000	3.3	≤16
Etesian S LED1x5300 G980 T840 MMC LO3	1524	47	74	100000/L80B10	5395	32.0	169	80+	4000	3.3	≤16
Etesian S LED1x6150 G981 T840 MMC LO4	1524	47	74	100000/L80B10	6282	37.8	166	80+	4000	3.3	≤16
Etesian S LED2x1500 G966 T840 WAC	600	600	43	100000/L80B10	2407	17.6	137	80+	4000	3.3	≤16
Etesian S LED2x1800 G967 T840 WAC	600	600	43	100000/L80B10	2953	21.9	135	80+	4000	3.3	≤16
Etesian S LED2x2150 G968 T840 WAC	600	600	43	100000/L80B10	3480	25.9	134	80+	4000	3.3	≤16
Etesian S LED2x2450 G969 T840 WAC	600	600	43	100000/L80B10	4011	30.8	130	80+	4000	3.3	≤16
Etesian S LED1x1500 G970 T840 WAC LO1	687	47	74	100000/L80B10	1203	9.7	124	80+	4000	3.3	≤16
Etesian S LED1x1800 G971 T840 WAC LO2	687	47	74	100000/L80B10	1476	11.5	128	80+	4000	3.3	≤16
Etesian S LED1x2150 G972 T840 WAC LO3	687	47	74	100000/L80B10	1740	13.8	126	80+	4000	3.3	≤16
Etesian S LED1x2450 G973 T840 WAC LO4	687	47	74	100000/L80B10	2006	16.3	123	80+	4000	3.3	≤16
Etesian S LED1x2950 G974 T840 WAC LO1	1245	47	74	100000/L80B10	2407	17.6	137	80+	4000	3.3	≤16
Etesian S LED1x3600 G975 T840 WAC LO2	1245	47	74	100000/L80B10	2953	21.9	135	80+	4000	3.3	≤16
Etesian S LED1x4250 G976 T840 WAC LO3	1245	47	74	100000/L80B10	3480	25.9	134	80+	4000	3.3	≤16
Etesian S LED1x4900 G977 T840 WAC LO4	1245	47	74	100000/L80B10	4011	30.8	130	80+	4000	3.3	≤16
Etesian S LED1x3650 G978 T840 WAC LO1	1524	47	74	100000/L80B10	3008	21.7	139	80+	4000	3.3	≤16
Etesian S LED1x4500 G979 T840 WAC LO2	1524	47	74	100000/L80B10	3691	26.8	138	80+	4000	3.3	≤16
Etesian S LED1x5300 G980 T840 WAC LO3	1524	47	74	100000/L80B10	4350	32.0	136	80+	4000	3.3	≤16
Etesian S LED1x6150 G981 T840 WAC LO4	1524	47	74	100000/L80B10	5066	37.8	134	80+	4000	3.3	≤16

Available options:
T830 – Colour temperature 3000K, CRI 80+
T840 – Colour temperature 4000K, CRI 80+
T930 – Colour temperature 3000K, CRI 90+
T940 – Colour temperature 4000K, CRI 90+

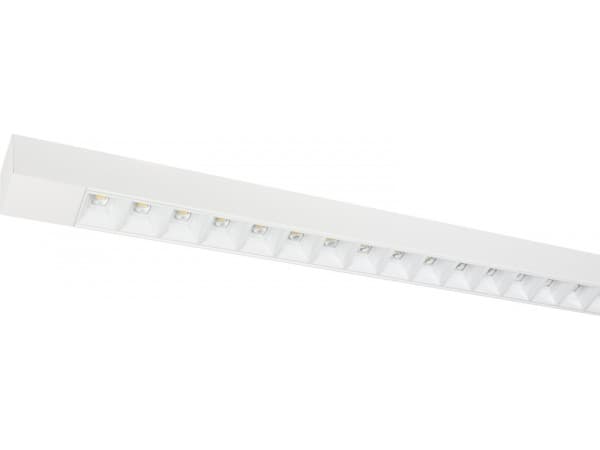

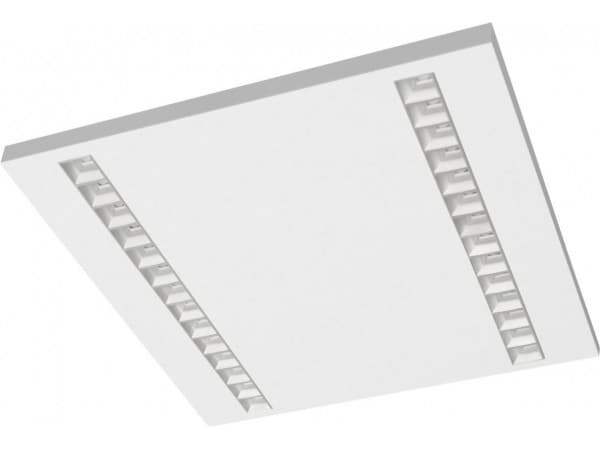

WMC – White matt reflector with clear lens

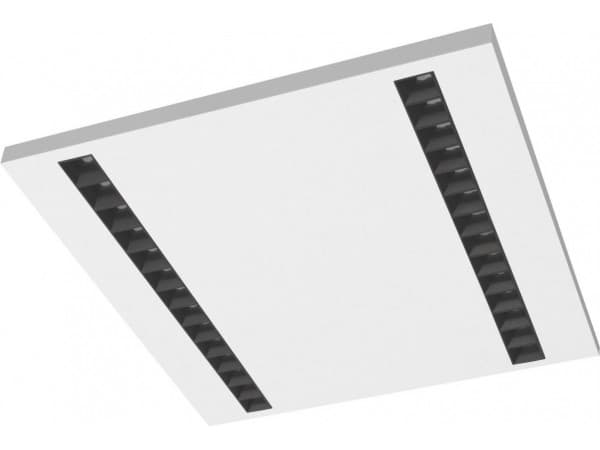

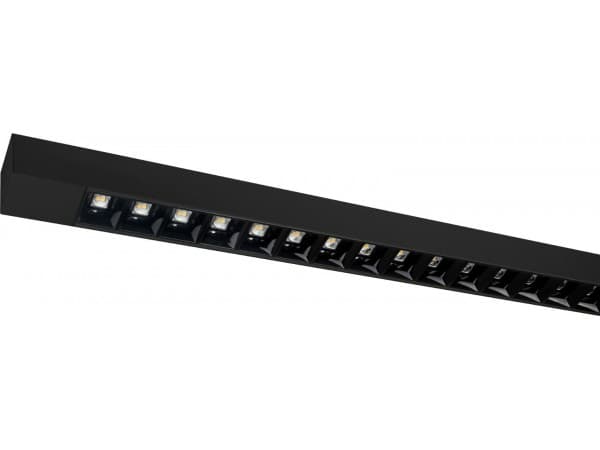

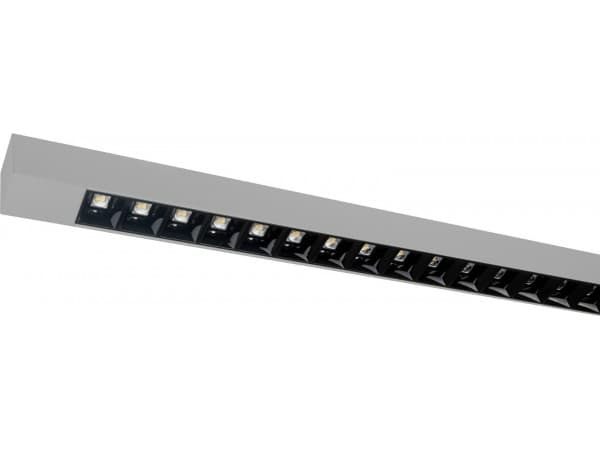

BMC – Black matt reflector with clear lens

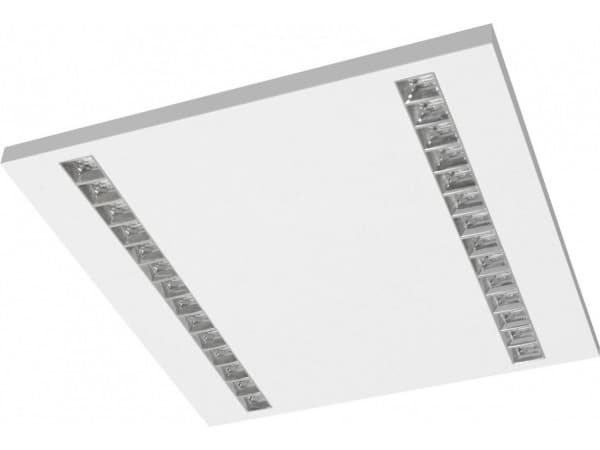

MGC – Metallic mirror finish reflector with clear lens
MMC – Metallic matt reflector with clear lens
WAC – Metallic mirror finish asymmetrical reflector with white shade and clear lens
BAC – Metallic mirror finish asymmetrical reflector with black shade and clear lens
DALI – Driver with DALI interface and switch-control dimming
EAIRB-M – Master luminaire with integrated smart sensor and driver with wireless communication and grouping possibilities for lighting control
*note – ingress protection IP20
EAIRB-S – Slave luminaire with integrated EAIR type driver for lighting control
*note – max system size 1x EAIRB-M + 3x EAIRB-S
*note – max wire length from EAIRB-M to last EAIRB-S – 11 meters
*note – EAIRB options are not applicable for models: G970, G971
BLT – Integrated wireless control unit and driver for lighting control via mobile device (via Bluetooth)
KRBLT – Integrated wireless control unit and driver for lighting control via mobile device (KR system app), on/off
KRBLT DALI – Integrated wireless control unit and driver for lighting control via mobile device (KR system app), DALI with integrated PS
COR – Driver with Corridor function (never off)
COR1min – Driver with Corridor function 1 min (switch off after 1 min)
COR30min – Driver with Corridor function 30 min (switch off after 30 min)
PIR(BASIC) – Integrated PIR sensor with on-off control, basic version
PIR – Integrated PIR sensor with on-off control
PIR DALI – Integrated PIR sensor with DALI control and power supply
PIR BLT DALI2 – Integrated wireless PIR sensor with CASAMBI app control. Requires DALI power supply
PIR KRBLT DALI – Integrated wireless PIR sensor with KR system app control and DALI power supply
EM3 – Emergency version 3 hours
EM3A – Emergency version equipped with an autonomous testing system, 3 hours
EM3D – Emergency version 3 hours with DALI interface
CBF3-1.5m – Outgoing flexible cable 3×0.75 mm² 1.5 m
CBF3-3.0m – Outgoing flexible cable 3×0.75 mm² 3.0 m
1LIN I-join L – Luminaire designed to in-line connection with join element – end/first luminaire (joint element not included). Through wired 3×1.5 mm² with two push-in terminal blocks
1LIN I-join LL – Luminaire designed to in-line connection with join element – intermediate luminaire (joint element not included). Through wired 3×1.5 mm² with two push-in terminal blocks
*note – LIN and L, LL options are only available for models with light output level marking LO1…4
RAL – RAL colour

Accessories:
I-JOIN MTG KIT Etesian S/U LED – “I” type join kit for connecting luminaires in-line
Remote Control HRC-12 – The functionality of the sensors is controlled by a number of parameters which can be changed or programmed remote with an infrared handset
*note – compatible with options: PIR
Remote Control HRC-11 – The functionality of the sensors is controlled by a number of parameters which can be changed or programmed remote with an infrared handset
*note – compatible with options: PIR; PIR DALI
