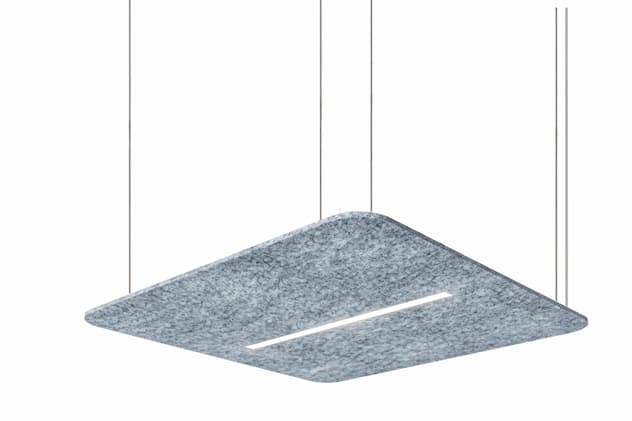

esviesa.lt | Echo Q LED IK05 IP40

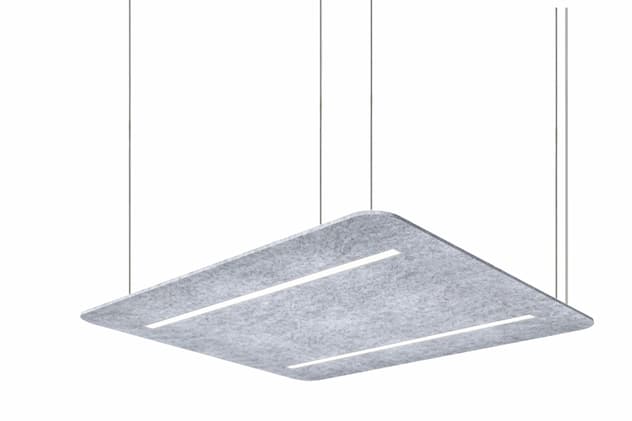

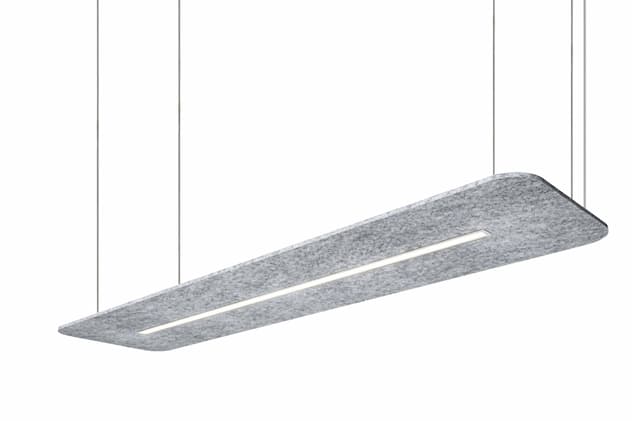

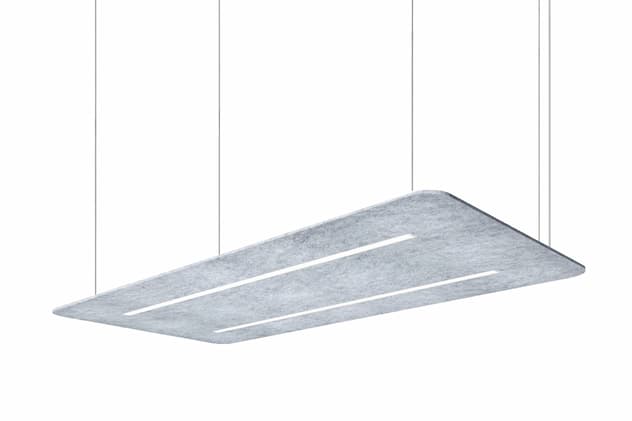

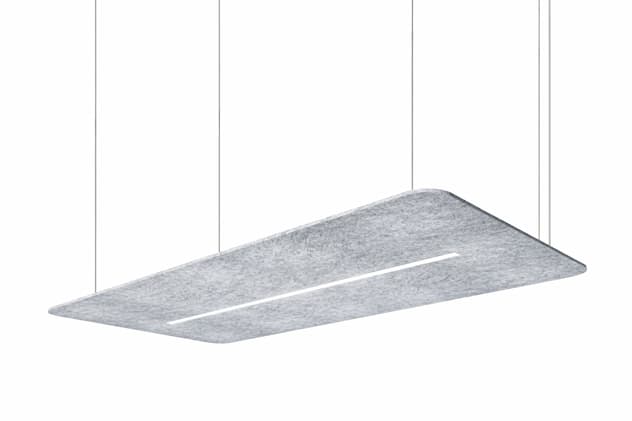

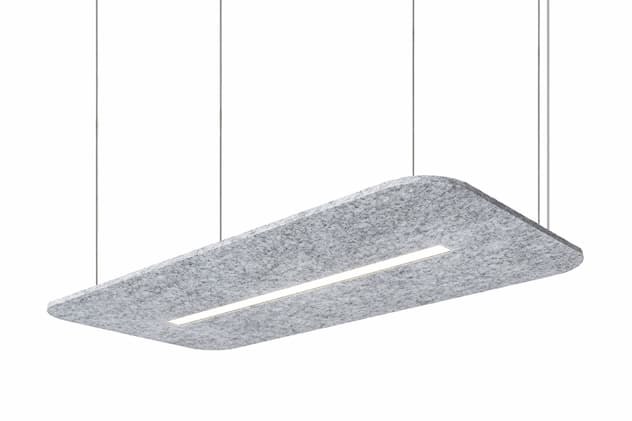

Suspended LED luminaire

More information:

Type:

Suspended acoustic LED luminaire

Specification:

Suspended decorative acoustic LED luminaire
Light distribution type: direct
Optical system: opal polycarbonate diffuser
Material: felt
Colour: made to the customer’s specification
Mains voltage: 220-240V, 0/50-60Hz
LED lifetime, h: 50000/L80B10
SDCM: 3
Protection class IEC: I
Ingress protection code: IP40
Mechanical impact resistance: IK05
Operating temperature range, °C: -15...+35
Push-in terminal, 3x2x2.5 mm2

Installation:

Suspended (accessories to be ordered separately)

Application:

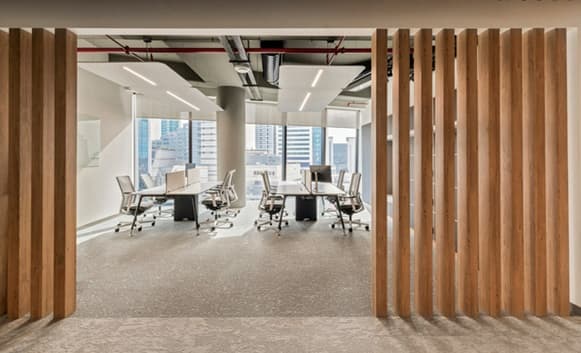

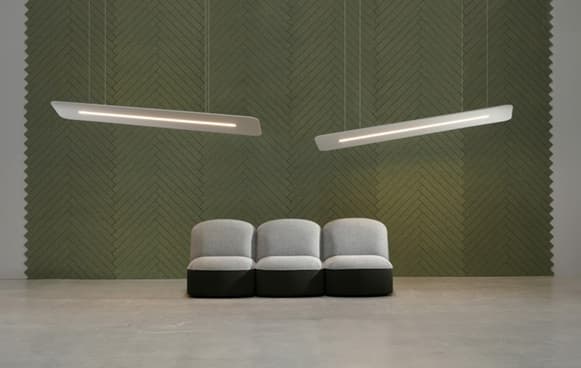

Indoor. Offices, hotels, retail, other public and commercial environments

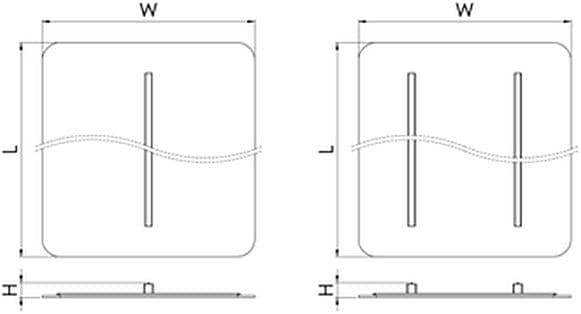

Name	Length, mm	Width, mm	Height, mm	LED lifetime, h	Output, lm	Power, W	Efficacy, lm/W	CRI (Ra)	CCT, K	Weight, kg
Echo Q LED1x1050 J911 T840 OP MN05	1200	600	68	50000/L80B10	1007	10.0	101	80+	4000	3.7
Echo Q LED1x1400 J912 T840 OP MN05	1200	600	68	50000/L80B10	1372	14.0	98	80+	4000	3.7
Echo Q LED1x1900 J913 T840 OP MN05	1200	600	68	50000/L80B10	1886	20.2	93	80+	4000	3.7
Echo Q LED1x2350 J914 T840 OP MN05	2400	600	68	50000/L80B10	2350	22.2	106	80+	4000	7.9
Echo Q LED1x3250 J915 T840 OP MN05	2400	600	68	50000/L80B10	3202	31.4	102	80+	4000	7.9
Echo Q LED1x4450 J916 T840 OP MN05	2400	600	68	50000/L80B10	4401	44.6	99	80+	4000	7.9
Echo Q LED1x1050 J917 T840 OP MN05	1200	1200	68	50000/L80B10	1007	10.0	101	80+	4000	5.8
Echo Q LED1x1400 J918 T840 OP MN05	1200	1200	68	50000/L80B10	1372	14.0	98	80+	4000	5.8
Echo Q LED1x1900 J919 T840 OP MN05	1200	1200	68	50000/L80B10	1886	20.2	93	80+	4000	5.8
Echo Q LED1x2350 J920 T840 OP MN05	2400	1200	68	50000/L80B10	2350	22.2	106	80+	4000	11.8
Echo Q LED1x3250 J921 T840 OP MN05	2400	1200	68	50000/L80B10	3202	31.4	102	80+	4000	11.8
Echo Q LED1x4450 J922 T840 OP MN05	2400	1200	68	50000/L80B10	4401	44.6	99	80+	4000	11.8
Echo Q LED2x1050 J923 T840 OP MN05	1200	1200	68	50000/L80B10	2014	20.0	101	80+	4000	7.5
Echo Q LED2x1400 J924 T840 OP MN05	1200	1200	68	50000/L80B10	2769	27.9	99	80+	4000	7.5
Echo Q LED2x1900 J925 T840 OP MN05	1200	1200	68	50000/L80B10	3841	40.6	95	80+	4000	7.5
Echo Q LED2x2350 J926 T840 OP MN05	2400	1200	68	50000/L80B10	4699	44.5	106	80+	4000	15.9
Echo Q LED2x3250 J927 T840 OP MN05	2400	1200	68	50000/L80B10	6461	62.9	103	80+	4000	15.9
Echo Q LED2x4450 J928 T840 OP MN05	2400	1200	68	50000/L80B10	8962	89.4	100	80+	4000	15.9

Available options:
M… (felt color code) – With Fabric cover

Accessories:
Suspension MTG KIT SUSI – Suspension wire set “I” type, 1.5 m adjustable, 1 pcs
*note – at least 4 pcs MTG KIT SUSI for one fitting required. For exact quantity please refer to installation manual
