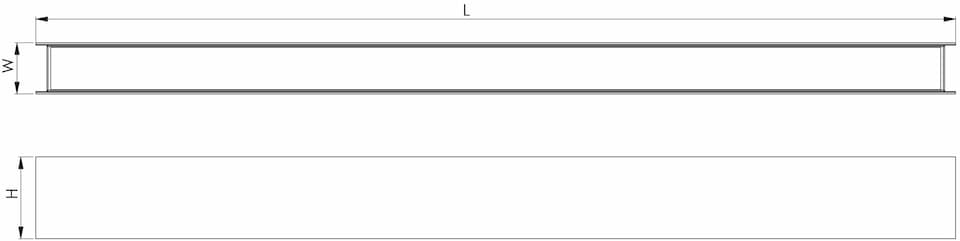

| Name | Length, mm | Width, mm | Height, mm | LED lifetime, h | Output, lm | Power, W | Efficacy, lm/W | CRI (Ra) | CCT, K | Weight, kg |
| Haud LED1x1650/1050 J413 T840 OP LT80 M… (felt color code) | 1159 | 50 | 99 | 50000/L80B10 | 2644 | 21.0 | 126 | 80+ | 4000 | 3.9 |
| Haud LED1x2200/1450 J414 T840 OP LT80 M… (felt color code) | 1159 | 50 | 99 | 50000/L80B10 | 3604 | 29.4 | 123 | 80+ | 4000 | 3.9 |
| Haud LED1x3050/1950 J415 T840 OP LT80 M… (felt color code) | 1159 | 50 | 99 | 50000/L80B10 | 4953 | 43.1 | 115 | 80+ | 4000 | 3.9 |
| Haud LED1x2050/1400 J416 T840 OP LT80 M… (felt color code) | 1439 | 50 | 99 | 50000/L80B10 | 3392 | 26.4 | 128 | 80+ | 4000 | 4.8 |
| Haud LED1x2750/1900 J417 T840 OP LT80 M… (felt color code) | 1439 | 50 | 99 | 50000/L80B10 | 4622 | 37.8 | 122 | 80+ | 4000 | 4.8 |
| Haud LED1x3800/2600 J418 T840 OP LT80 M… (felt color code) | 1439 | 50 | 99 | 50000/L80B10 | 6354 | 54.9 | 116 | 80+ | 4000 | 4.8 |
Available options:
T830 – Colour temperature 3000K, CRI 80+
T840 – Colour temperature 4000K, CRI 80+
OP LT80 – Opal diffuser with high light transmittance
DPRZ LT80 – De-glaring micro-prismatic diffuser with matt light scattering layer
DALI – Driver with DALI interface and switch-control dimming
DALIsep – Driver with DALI interface and with possibility to control down and up light separately
PULL – Pull switch device, on/off
PULLDIM – Pull switch device and driver with switch-control dimming
*note – for PULL and PULLDIM options luminaire housing is 50 mm longer and switch is positioned at the end of luminaire
Lsep – Option that enables to control (on/off) down and up lights separately
RAL – RAL colour
M… (felt color code) – With Fabric cover, height 10 mm
Accessories:
CAP cable clip D6.3mm SET clear – Cable and suspension wire clip set, 4 pcs. For cable diameter up to 6,3 mm and wire diameter 1 mm
Suspension MTG KIT SUSI – Suspension wire set “I” type, 1.5 m adjustable, 1 pcs
*note – at least 2 pcs MTG KIT SUSI for one fitting required. For exact quantity please refer to installation manual
CAP4, white/ light grey/ black – Square decorative metal cap for hiding cable inlet with suspension wire attachment point, push-in terminals 3x1x1.5 mm², white/ light grey/ black
CAP5, white/ light grey/ black – Square decorative metal cap for hiding cable inlet with suspension wire attachment point, push-in terminals 5x1x1.5 mm², white/ light grey/ black
