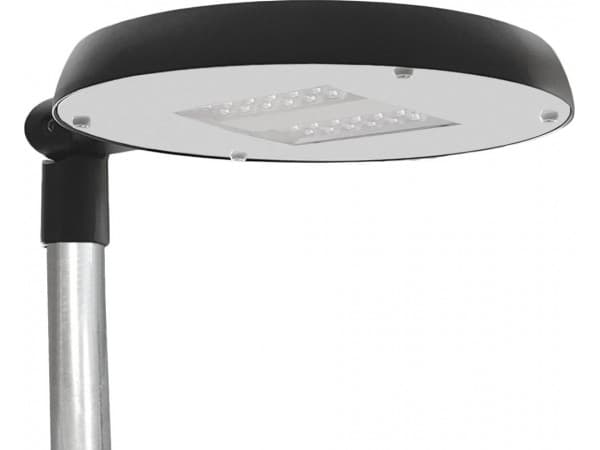

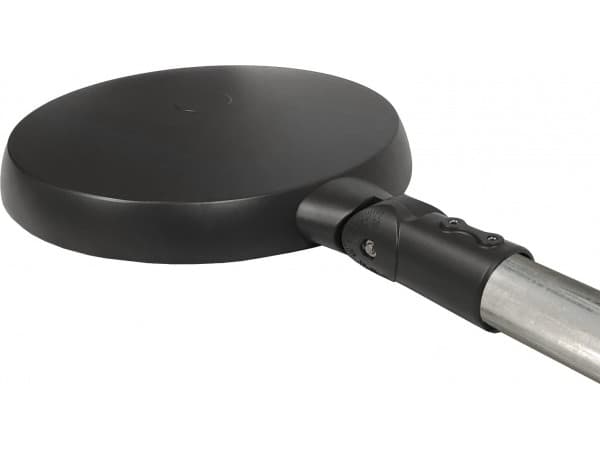

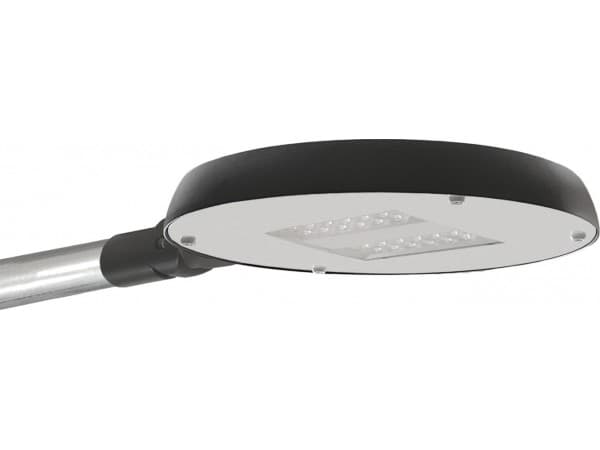

esviesa.lt | Alkes A LED IK08 IP66

LED street luminaire

More information:

Type:

Pole-mounted LED street luminaire

Specification:

Pole-mounted LED street luminaire
Light distribution type: direct

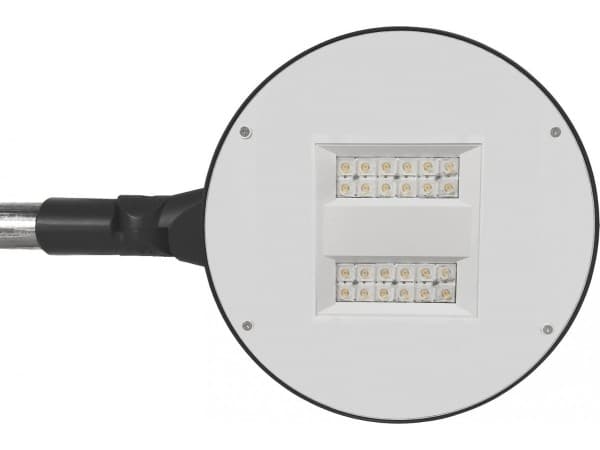

Optical system: lenses, tempered glass diffuser, impact resistant
Housing: aluminium
Colour: black grey, RAL7021
Mains voltage: 220-240V, 0/50-60Hz
LED lifetime, h: 100000/L90B10
SDCM: 5
Protection class IEC: I
Ingress protection code: IP66
Mechanical impact resistance: IK08
Operating temperature range, °C: -40...+40
Cable, 3.0 m, 3x0.75 mm²

Installation:

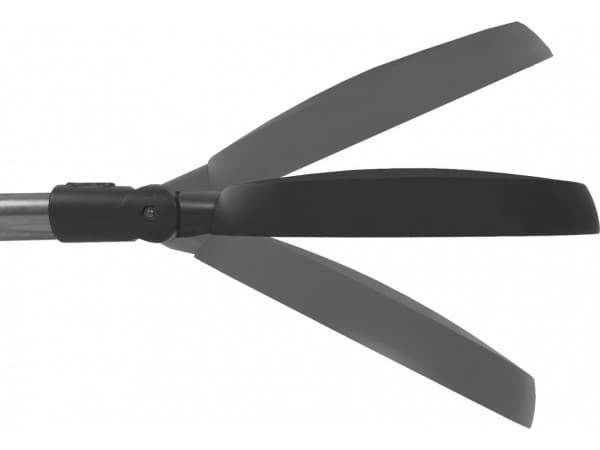

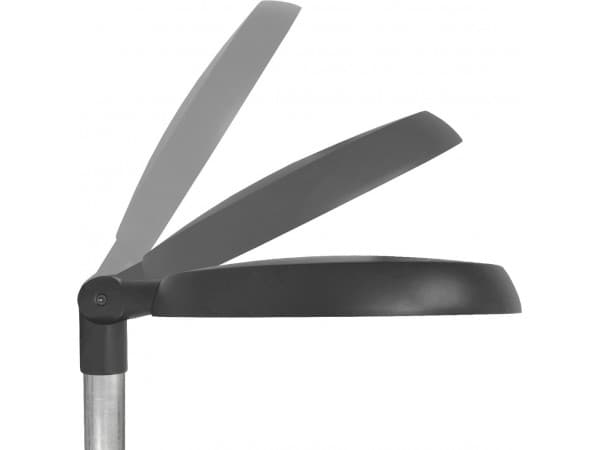

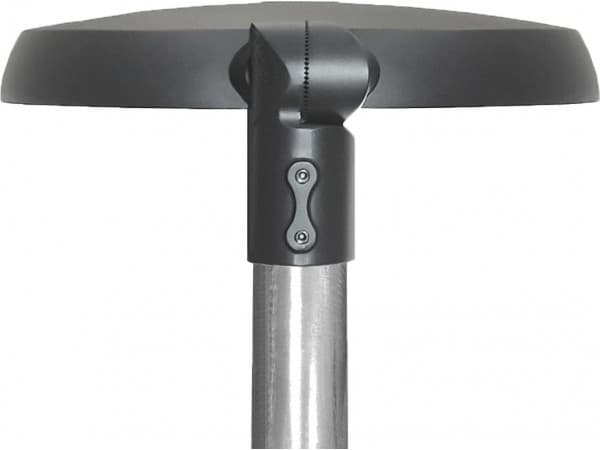

With two screws on Ø60 mm horizontal or vertical pole, on the wall (mounting bracket to be ordered separately). Adjustable installation angles: on horizontal pole: +/- 90 degrees, on vertical pole: + 90 degrees. Lighting poles (lighting supports, brackets, foundations, protective rubbers) are ordered separately as needed

Application:

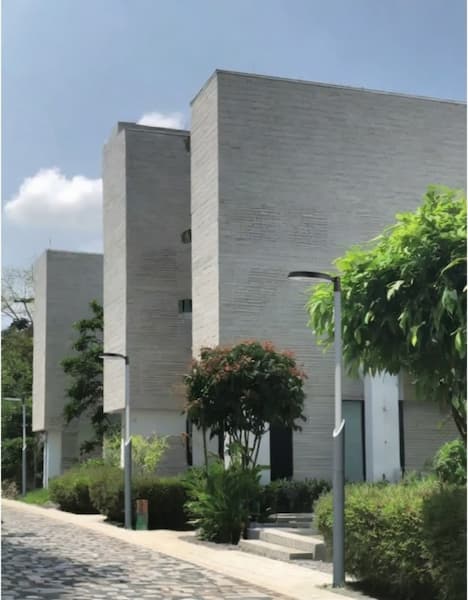

Outdoor. Parking area, public space, street

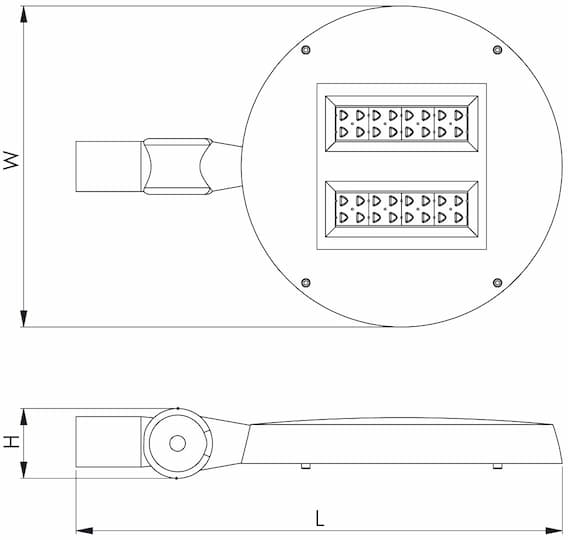

Name	Length, mm	Width, mm	Height, mm	LED lifetime, h	Output, lm	Power, W	Efficacy, lm/W	CRI (Ra)	CCT, K	Weight, kg
Alkes A LED1x5850 J458 T740 LSM1	672	490	91	100000/L90B10	5820	36.2	161	70+	4000	9
Alkes A LED1x7950 J459 T740 LSM1	672	490	91	100000/L90B10	7923	51.0	155	70+	4000	9
Alkes A LED1x9900 J460 T740 LSM1	672	490	91	100000/L90B10	9891	67.2	147	70+	4000	9
Alkes A LED1x11300 J461 T740 LSM1	672	490	91	100000/L90B10	11255	78.4	144	70+	4000	9

Available options:
T730 – Colour temperature 3000K, CRI 70+
T740 – Colour temperature 4000K, CRI 70+
ADIM – Driver with autonomous two-level dimming
DALI – Driver with DALI interface
LS140 – Optics with 140×140° beam angle
LSM1 – Optics with asymmetric beam SM1
LSM2 – Optics with asymmetric beam SM2
LSS1 – Optics with asymmetric beam SS1
LSS2 – Optics with asymmetric beam SS2
LSPR – Optics with asymmetric beam LSPR for pedestrian-crossing “right”
LSPL – Optics with asymmetric beam LSPL for pedestrian-crossing “left”
II – Electric Shock protection class II
CBF3x1.5-N m – Outgoing flexible cable 3×1.5 mm², length according to customer specification
CBF5x1.5-N m – Outgoing flexible cable 5×1.5 mm², length according to customer specification
*note – please specify the length of outgoing cable before placing an order
RAL – RAL colour

Accessories:
WALL MTG bracket (Street LED D60mm 10° P7021S) – Bracket for street luminaire installation onto wall, pole diameter D60mm, 10° angle, dark grey RAL7021S, 1 pcs
