esviesa.lt | Wing R LED IK02 IP40 UGR

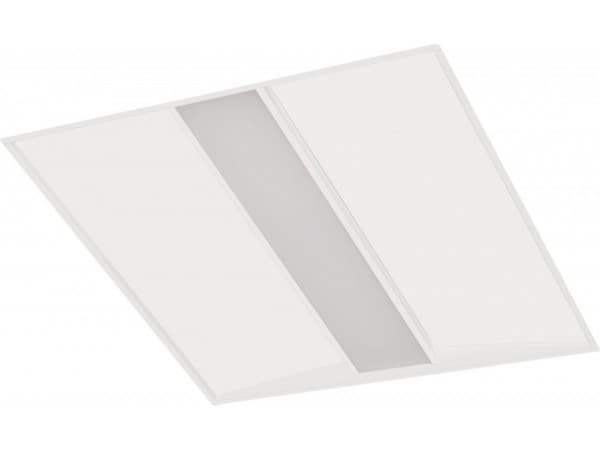

Unique Design Recessed LED Luminaire

More information:

Type:

A unique recessed LED luminaire with microprismatic or opal diffuser for most commercial lighting applications

Specification:

Recessed mounted LED luminaire
Light distribution: direct/indirect
Optical system: matt micro-prismatic PMMA diffuser, low glare
UGR index: ≤19

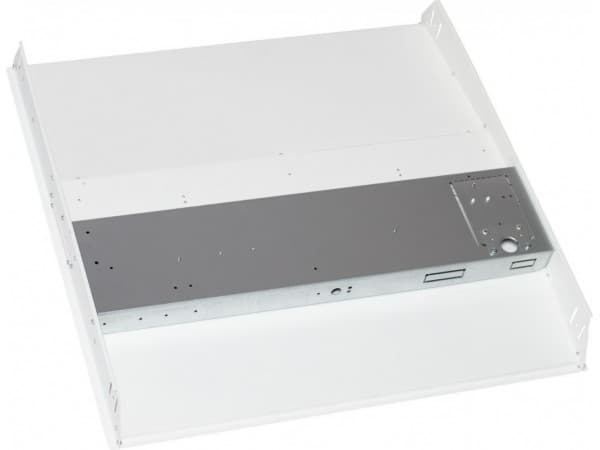

Housing: steel
Colour: white, RAL9003
Mains voltage: 220-240V, 0/50-60Hz
LED lifetime, h: 100000/L80B10
SDCM: 3
Protection class IEC: I
Ingress protection code: IP40/20
Mechanical impact resistance: IK02
Operating temperature range, °C: 0…+35
Push-in terminal, 3x2x2.5 mm²

Installation:

In modular suspended ceilings (600), in ceilings with cut-out openings (mounting frame to be ordered separately)

Application:

Indoor. Offices, corridors, retail and other commercial environments

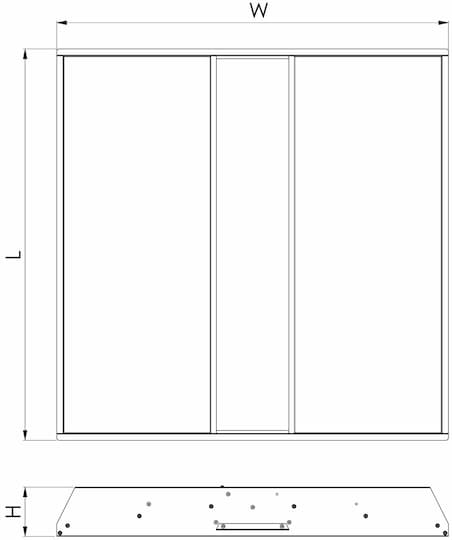

Name	Length, mm	Width, mm	Height, mm	LED lifetime, h	Output, lm	Power, W	Efficacy, lm/W	CRI (Ra)	CCT, K	Weight, kg	UGR index
Wing R LED1x3300 G882 T840 DPRZ LT80	595	595	75	100000/L80B10	3288	25.9	127	80+	4000	3.7	≤19
Wing R LED1x4500 G883 T840 DPRZ LT80	595	595	75	100000/L80B10	4498	33.7	133	80+	4000	3.7	≤19

Available options:
T830 – Colour temperature 3000K, CRI 80+
T840 – Colour temperature 4000K, CRI 80+
OP TP(a) – TP(a) rated thermoplastic opal diffuser
DALI – Driver with DALI interface and switch-control dimming
EAIRB-S – Slave luminaire with integrated EAIR type driver for lighting control
EAIRB-M – Master luminaire with integrated smart sensor and driver with Bluetooth communication and grouping possibilities for lighting control
*note – ingress protection IP20
BLT – Integrated wireless control unit and driver for lighting control via mobile device (via Bluetooth)
KRBLT – Integrated wireless control unit and driver for lighting control via mobile device (KR system app), on/off
KRBLT DALI – Integrated wireless control unit and driver for lighting control via mobile device (KR system app), DALI with integrated PS
TW – Integrated light source and driver for Tunable white control 2700-6500 K
BLT TW – Integrated light source, wireless control unit and driver for Tunable white control 2700-6500 K via mobile device (via Bluetooth)
COR – Driver with Corridor function (never off)
COR1min – Driver with Corridor function 1 min (switch off after 1 min)
COR30min – Driver with Corridor function 30 min (switch off after 30 min)
EM3 – Emergency version 3 hours
EM3A – Emergency version equipped with an autonomous testing system, 3 hours
EM3D – Emergency version 3 hours with DALI interface
WIE3 – 3-pole “Wieland – gesis classic” type or compatible connector
WIE5 – 5-pole “Wieland – gesis classic” type or compatible connector
WIE5D – 5-pole DALI “Wieland – gesis classic” type or compatible connector
Schuko-1.5m – 3-pole “Schuko” type plug with 3×1.0 mm² 1.5 m cable
Schuko-3.0m – 3-pole “Schuko” type plug with 3×1.0 mm² 3.0 m cable
RAL – RAL colour
