esviesa.lt | Ara R LED IK08 IP65

emergency escape luminaire

Name	Length, mm	Width, mm	Height, mm	LED lifetime, h	Output, lm	Power, W	CRI (Ra)	CCT, K	Weight, kg
Ara R 1HLED C364 LER IP65	100	100	37	70000/L80B10	180	1	80+	6000	0.60
Ara R 3HLED C365 LER IP65	100	100	37	70000/L80B10	180	1	80+	6000	0.65
Ara R 1PLED C366 LER IP65	100	100	37	70000/L80B10	180	1	80+	6000	0.60
Ara R 3PLED C367 LER IP65	100	100	37	70000/L80B10	180	1	80+	6000	0.65
Ara R 1PLED C366 LER IP65 AUT	100	100	37	70000/L80B10	190	1	80+	6000	0.60
Ara R 3PLED C367 LER IP65 AUT	100	100	37	70000/L80B10	190	1	80+	6000	0.65
Ara R CEBLED C368 LER IP65	100	100	37	70000/L80B10	190	1	80+	6000	0.60
Ara R 1PLED C366 LER IP65 EMS	100	100	37	70000/L80B10	190	1	80+	6000	0.60
Ara R 3PLED C367 LER IP65 EMS	100	100	37	70000/L80B10	190	1	80+	6000	0.65
Ara R 1PLED C366 LER IP65 DALI	100	100	37	70000/L80B10	190	1	80+	6000	0.60
Ara R 3PLED C367 LER IP65 DALI	100	100	37	70000/L80B10	190	1	80+	6000	0.65
Ara R 1HLED C364 LOA IP65	100	100	37	70000/L80B10	180	1	80+	6000	0.60
Ara R 3HLED C365 LOA IP65	100	100	37	70000/L80B10	180	1	80+	6000	0.65
Ara R 1PLED C366 LOA IP65	100	100	37	70000/L80B10	180	1	80+	6000	0.60
Ara R 3PLED C367 LOA IP65	100	100	37	70000/L80B10	180	1	80+	6000	0.65
Ara R 1PLED C366 LOA IP65 AUT	100	100	37	70000/L80B10	190	1	80+	6000	0.60
Ara R 3PLED C367 LOA IP65 AUT	100	100	37	70000/L80B10	190	1	80+	6000	0.65
Ara R CEBLED C368 LOA IP65	100	100	37	70000/L80B10	190	1	80+	6000	0.60
Ara R 1PLED C366 LOA IP65 EMS	100	100	37	70000/L80B10	190	1	80+	6000	0.60
Ara R 3PLED C367 LOA IP65 EMS	100	100	37	70000/L80B10	190	1	80+	6000	0.65
Ara R 1PLED C366 LOA IP65 DALI	100	100	37	70000/L80B10	190	1	80+	6000	0.60
Ara R 3PLED C367 LOA IP65 DALI	100	100	37	70000/L80B10	190	1	80+	6000	0.65
Ara R 1PLED C371 LER IP65	100	100	37	70000/L80B10	400	3	80+	6000	0.65
Ara R 3PLED C372 LER IP65	100	100	37	70000/L80B10	400	3	80+	6000	0.65
Ara R 1PLED C371 LER IP65 AUT	100	100	37	70000/L80B10	460	3	80+	6000	0.65
Ara R 3PLED C372 LER IP65 AUT	100	100	37	70000/L80B10	460	3	80+	6000	0.65
Ara R CEBLED C373 LER IP65	100	100	37	70000/L80B10	460	3	80+	6000	0.60
Ara R 1PLED C371 LER IP65 EMS	100	100	37	70000/L80B10	460	3	80+	6000	0.65
Ara R 3PLED C372 LER IP65 EMS	100	100	37	70000/L80B10	460	3	80+	6000	0.65
Ara R 1PLED C371 LER IP65 DALI	100	100	37	70000/L80B10	460	3	80+	6000	0.65
Ara R 3PLED C372 LER IP65 DALI	100	100	37	70000/L80B10	460	3	80+	6000	0.65
Ara R 1PLED C371 LOA IP65	100	100	37	70000/L80B10	405	3	80+	6000	0.65
Ara R 3PLED C372 LOA IP65	100	100	37	70000/L80B10	405	3	80+	6000	0.65
Ara R 1PLED C371 LOA IP65 AUT	100	100	37	70000/L80B10	460	3	80+	6000	0.65
Ara R 3PLED C372 LOA IP65 AUT	100	100	37	70000/L80B10	460	3	80+	6000	0.65
Ara R CEBLED C373 LOA IP65	100	100	37	70000/L80B10	460	3	80+	6000	0.60
Ara R 1PLED C371 LOA IP65 EMS	100	100	37	70000/L80B10	460	3	80+	6000	0.65
Ara R 3PLED C372 LOA IP65 EMS	100	100	37	70000/L80B10	460	3	80+	6000	0.65
Ara R 1PLED C371 LOA IP65 DALI	100	100	37	70000/L80B10	460	3	80+	6000	0.65
Ara R 3PLED C372 LOA IP65 DALI	100	100	37	70000/L80B10	460	3	80+	6000	0.65
Ara R 1PLED C376 LER IP65	100	100	37	70000/L80B10	785	6	80+	6000	0.75
Ara R 3PLED C377 LER IP65	100	100	37	70000/L80B10	785	6	80+	6000	1.10
Ara R 1PLED C376 LER IP65 AUT	100	100	37	70000/L80B10	785	6	80+	6000	0.75
Ara R 3PLED C377 LER IP65 AUT	100	100	37	70000/L80B10	785	6	80+	6000	1.10
Ara R CEBLED C378 LER IP65	100	100	37	70000/L80B10	785	6	80+	6000	0.75
Ara R 1PLED C376 LER IP65 EMS	100	100	37	70000/L80B10	785	6	80+	6000	0.75
Ara R 3PLED C377 LER IP65 EMS	100	100	37	70000/L80B10	785	6	80+	6000	1.10
Ara R 1PLED C376 LER IP65 DALI	100	100	37	70000/L80B10	785	6	80+	6000	0.75
Ara R 3PLED C377 LER IP65 DALI	100	100	37	70000/L80B10	785	6	80+	6000	1.10
Ara R CLV2 U69 LER IP65	100	100	37	70000/L80B10	785	6	80+	6000	0.75
Ara R 1PLED C376 LOA IP65	100	100	37	70000/L80B10	775	6	80+	6000	0.75
Ara R 3PLED C377 LOA IP65	100	100	37	70000/L80B10	775	6	80+	6000	1.10
Ara R 1PLED C376 LOA IP65 AUT	100	100	37	70000/L80B10	775	6	80+	6000	0.75
Ara R 3PLED C377 LOA IP65 AUT	100	100	37	70000/L80B10	775	6	80+	6000	1.10
Ara R CEBLED C378 LOA IP65	100	100	37	70000/L80B10	775	6	80+	6000	0.75
Ara R 1PLED C376 LOA IP65 EMS	100	100	37	70000/L80B10	775	6	80+	6000	0.75
Ara R 3PLED C377 LOA IP65 EMS	100	100	37	70000/L80B10	775	6	80+	6000	1.10
Ara R 1PLED C376 LOA IP65 DALI	100	100	37	70000/L80B10	775	6	80+	6000	0.75
Ara R 3PLED C377 LOA IP65 DALI	100	100	37	70000/L80B10	775	6	80+	6000	1.10
Ara R CLV2 U69 LOA IP65	100	100	37	70000/L80B10	775	6	80+	6000	0.75

Available options:
DALI – Driver with DALI interface
*note – DALI option is applicable for models: C366, C367, C371, C372, C376, C377

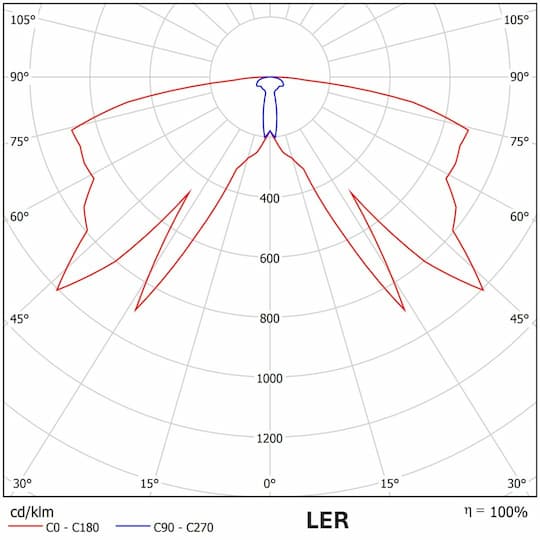

LER – Lens for escape route

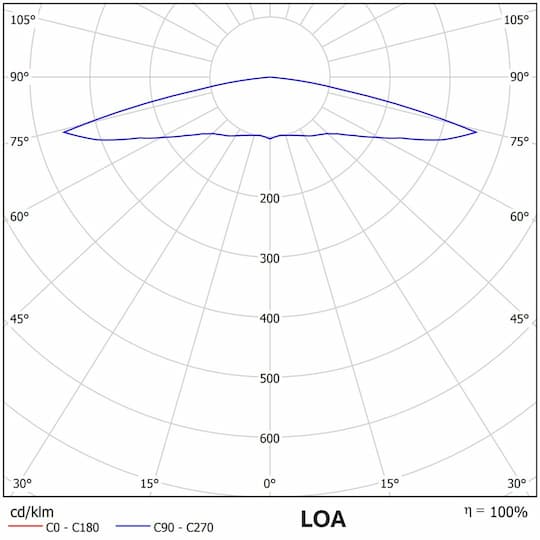

LOA – Lens for open areas
LEW – Lens for escape route (wide corridor)
LOU – Lens for open areas (high ceiling)
AUT – Autonomous testing system
CEB – Fitting to central battery system
CLV – Fitting to low voltage central 24 V battery system CEBLV
CLV2 – Fitting to low voltage central 48 V battery system CEBLV
*note: only for U69 model
EMS – Fitting to emergency monitoring system
*note – EMS option is applicable for models: C366, C367, C371, C372, C376, C377
LGREY – Light grey thermoplastic body
BLACK – Black thermoplastic body
