esviesa.lt | Corridor R LED IK08 IP20

LED emergency escape luminaire

More information:

Type:

Recessed LED emergency lighting luminaire for both mains and emergency operations. One or three hours emergency operating time with a recharge time of 24 (or 12) hours. Ambient temperature: 0°C to +40°C

Specification:

Recessed mounted LED emergency escape luminaire
Light distribution type: direct
Optical system: lenses
Housing: polycarbonate
Colour: white; light grey; black
Battery charging time: 24 hours (12 hours optional: AUT)
Battery: NiCd (LiFePO4 optional: AUT), deep discharge protection
Mains voltage: 220-240V, 50-60Hz
LED lifetime, h: 70000/L80B10
SDCM: 3
Protection class IEC: II
Ingress protection code: IP20
Mechanical impact resistance: IK08
Operating temperature range, °C: 0…+40 (CEBLED -25…+50)
Electronic gear and battery package installed in a separate box
Push-in terminal, 3x2x2.5 mm²

Installation:

In ceilings with cut-out openings (mounting brackets included)

Application:

For emergency escape routes and open areas

emergency escape luminaire

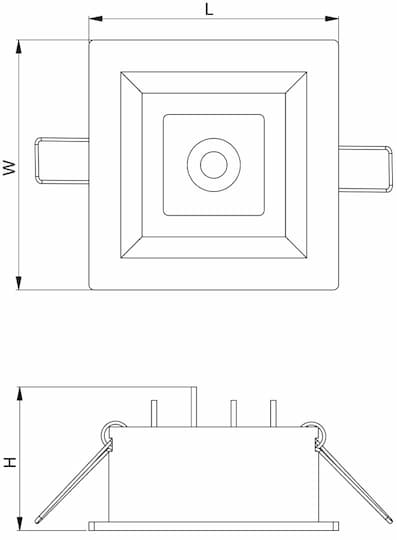

Name	Length, mm	Width, mm	Height, mm	LED lifetime, h	Output, lm	Power, W	CRI (Ra)	CCT, K	Weight, kg

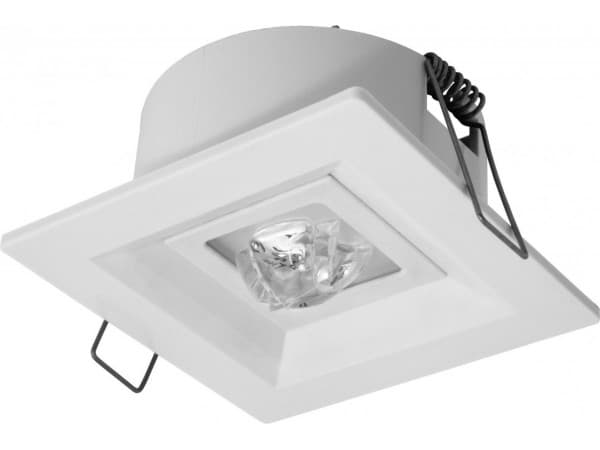

Corridor R 1HLED U22 LER	90	90	53	70000/L80B10	180	1	80+	6000	0.60
Corridor R 3HLED U24 LER	90	90	53	70000/L80B10	180	1	80+	6000	0.65
Corridor R 1PLED U25 LER	90	90	53	70000/L80B10	180	1	80+	6000	0.60
Corridor R 3PLED U27 LER	90	90	53	70000/L80B10	180	1	80+	6000	0.65
Corridor R 1PLED U25 LER AUT	90	90	53	70000/L80B10	190	1	80+	6000	0.60
Corridor R 3PLED U27 LER AUT	90	90	53	70000/L80B10	190	1	80+	6000	0.65
Corridor R CBLED C319 LER	90	90	53	70000/L80B10	190	1	80+	6000	0.60
Corridor R 1PLED U25 LER EMS	90	90	53	70000/L80B10	190	1	80+	6000	0.60
Corridor R 3PLED U27 LER EMS	90	90	53	70000/L80B10	190	1	80+	6000	0.65
Corridor R 1PLED U25 LER DALI	90	90	53	70000/L80B10	190	1	80+	6000	0.60
Corridor R 3PLED U27 LER DALI	90	90	53	70000/L80B10	190	1	80+	6000	0.65

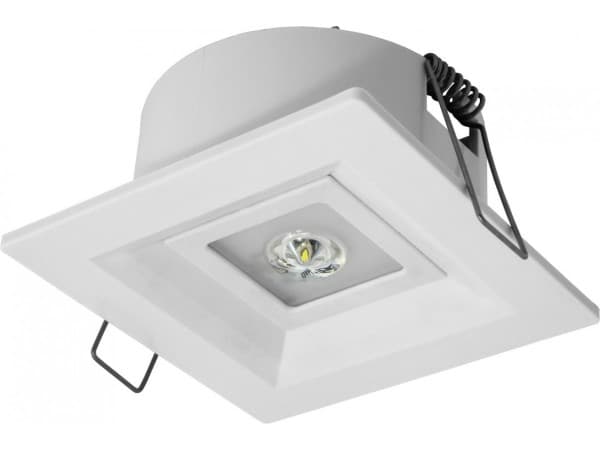

Corridor R 1HLED U22 LOA	90	90	53	70000/L80B10	175	1	80+	6000	0.60
Corridor R 3HLED U24 LOA	90	90	53	70000/L80B10	175	1	80+	6000	0.65
Corridor R 1PLED U25 LOA	90	90	53	70000/L80B10	175	1	80+	6000	0.60
Corridor R 3PLED U27 LOA	90	90	53	70000/L80B10	175	1	80+	6000	0.65
Corridor R 1PLED U25 LOA AUT	90	90	53	70000/L80B10	185	1	80+	6000	0.60
Corridor R 3PLED U27 LOA AUT	90	90	53	70000/L80B10	185	1	80+	6000	0.65
Corridor R CBLED C319 LOA	90	90	53	70000/L80B10	185	1	80+	6000	0.60
Corridor R 1PLED U25 LOA EMS	90	90	53	70000/L80B10	185	1	80+	6000	0.60
Corridor R 3PLED U27 LOA EMS	90	90	53	70000/L80B10	185	1	80+	6000	0.65
Corridor R 1PLED U25 LOA DALI	90	90	53	70000/L80B10	185	1	80+	6000	0.60
Corridor R 3PLED U27 LOA DALI	90	90	53	70000/L80B10	185	1	80+	6000	0.65
Corridor R 1PLED J10 LER	90	90	53	70000/L80B10	400	3	80+	6000	0.65
Corridor R 3PLED J12 LER	90	90	53	70000/L80B10	400	3	80+	6000	0.70
Corridor R 1PLED J10 LER AUT	90	90	53	70000/L80B10	460	3	80+	6000	0.65
Corridor R 3PLED J12 LER AUT	90	90	53	70000/L80B10	460	3	80+	6000	0.70
Corridor R CBLED C320 LER	90	90	53	70000/L80B10	460	3	80+	6000	0.65
Corridor R 1PLED J10 LER EMS	90	90	53	70000/L80B10	460	3	80+	6000	0.65
Corridor R 3PLED J12 LER EMS	90	90	53	70000/L80B10	460	3	80+	6000	0.70
Corridor R 1PLED J10 LER DALI	90	90	53	70000/L80B10	460	3	80+	6000	0.65
Corridor R 3PLED J12 LER DALI	90	90	53	70000/L80B10	460	3	80+	6000	0.70
Corridor R 1PLED J10 LOA	90	90	53	70000/L80B10	385	3	80+	6000	0.65
Corridor R 3PLED J12 LOA	90	90	53	70000/L80B10	385	3	80+	6000	0.70
Corridor R 1PLED J10 LOA AUT	90	90	53	70000/L80B10	460	3	80+	6000	0.65
Corridor R 3PLED J12 LOA AUT	90	90	53	70000/L80B10	460	3	80+	6000	0.70
Corridor R CBLED C320 LOA	90	90	53	70000/L80B10	460	3	80+	6000	0.65
Corridor R 1PLED J10 LOA EMS	90	90	53	70000/L80B10	460	3	80+	6000	0.65
Corridor R 3PLED J12 LOA EMS	90	90	53	70000/L80B10	460	3	80+	6000	0.70
Corridor R 1PLED J10 LOA DALI	90	90	53	70000/L80B10	460	3	80+	6000	0.65
Corridor R 3PLED J12 LOA DALI	90	90	53	70000/L80B10	460	3	80+	6000	0.70

Available options:
DALI – Driver with DALI interface
*note – DALI option is applicable for models: U25, U27, J10, J12

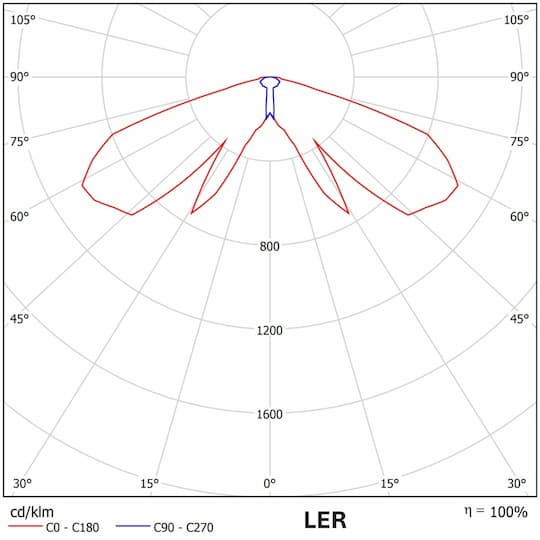

LER – Lens for escape route

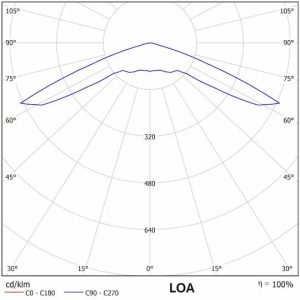

LOA – Lens for open areas
LEW – Lens for escape route (wide corridor)
LOU – Lens for open areas (high ceiling)
TEST – Manual test button
AUT – Autonomous testing system
CEB – Fitting to central battery system
EMS – Fitting to emergency monitoring system
LGREY – Light grey thermoplastic body
BLACK – Black thermoplastic body
