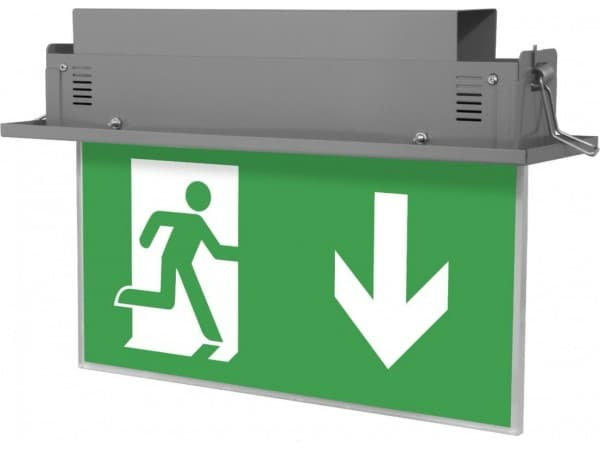

esviesa.lt | Capella LED IK02 IP20

LED emergency luminaire

More information:

Type:

Recessed double-sided LED emergency exit sign. One or three hour emergency operating time with a recharge time of 24 (or 12) hours. Ambient temperature: 0°C to +40°C. Recognition distance 30 m

Specification:

Recessed mounted LED emergency exit sign
Light distribution type: omnidirectional
Optical system: clear PMMA diffuser
Housing: steel
Colour: grey, RAL7045; white
Battery charging time: 24 hours (12 hours optional: AUT)
Battery: NiCd (LiFePO4 optional: AUT), deep discharge protection
Recognition distance: 30 meters
Mains voltage: 220-240V, 50-60Hz
LED lifetime, h: 70000/L80B10
SDCM: 3
Protection class IEC: I
Ingress protection code: IP20
Mechanical impact resistance: IK02
Operating temperature range, °C: 0…+40 (CEBLED, CLV 0...+50)
Push-in terminal, 4x2x2.5 mm²
Note: supplied with universal sticker kit

Installation:

In ceilings with cut-out openings (mounting brackets included)

Application:

Indoor. For informational purposes when electricity supply fails. Suitable for escape routes and open areas

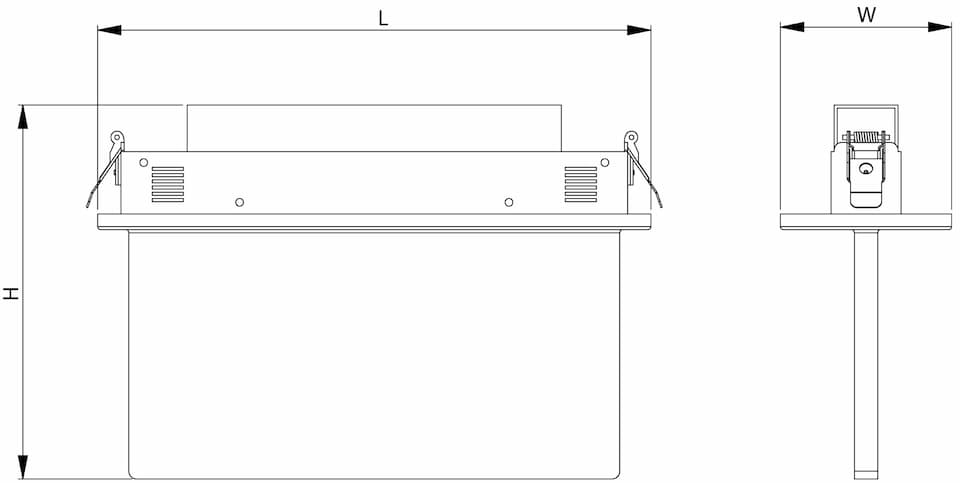

Name	Length, mm	Width, mm	Height, mm	LED lifetime, h	Power, W	CRI (Ra)	CCT, K	Weight, kg
Capella 1HLED G17	355	110	270	70000/L80B10	1	80+	6000	1.60
Capella 3HLED C24	355	110	270	70000/L80B10	1	80+	6000	1.65
Capella 1PLED G19	355	110	270	70000/L80B10	1	80+	6000	1.60
Capella 3PLED C25	355	110	270	70000/L80B10	1	80+	6000	1.65
Capella 1PLED G19 AUT	355	110	270	70000/L80B10	1	80+	6000	1.60
Capella 3PLED C25 AUT	355	110	270	70000/L80B10	1	80+	6000	1.65
Capella CEBLED C340	355	110	270	70000/L80B10	1	80+	6000	1.60
Capella 1PLED G19 EMS	355	110	270	70000/L80B10	1	80+	6000	1.60
Capella 3PLED C25 EMS	355	110	270	70000/L80B10	1	80+	6000	1.65
Capella 1PLED G19 DALI	355	110	270	70000/L80B10	1	80+	6000	1.60
Capella 3PLED C25 DALI	355	110	270	70000/L80B10	1	80+	6000	1.65

Available options:
DALI – Driver with DALI interface
*note – DALI option is applicable for models: G19, C25
TEST – Manual test button
AUT – Autonomous testing system
CEB – Fitting to central battery system
WHITE – White steel body
