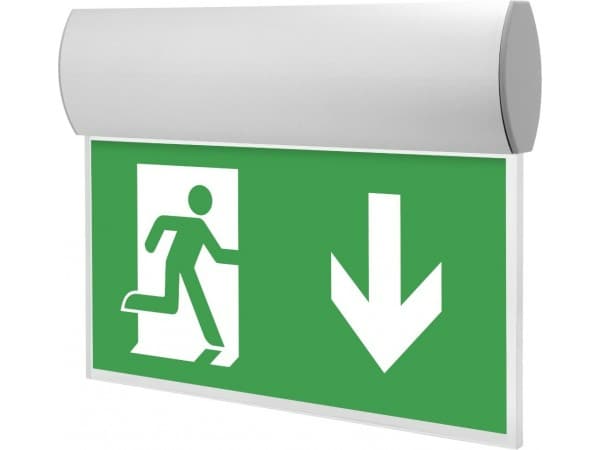

esviesa.lt | Taurus LED Deluxe IK02 IP41

LED emergency luminaire

More information:

Type:

Surface mounted double-sided LED emergency exit sign. One or three hour emergency operating time with a recharge time of 24 (or 12) hours. Ambient temperature: 0°C to +40°C. Recognition distance 30 m

Specification:

Surface mounted double-sided LED emergency exit sign
Light distribution type: omnidirectional
Optical system: clear PMMA diffuser
Housing: extruded aluminium
Colour: light grey; black
Battery charging time: 24 hours (12 hours optional: AUT)
Battery: NiCd (LiFePO4 optional: AUT), deep discharge protection
Recognition distance: 30 meters
Mains voltage: 220-240V, 50-60Hz
LED lifetime, h: 70000/L80B10
SDCM: 3
Protection class IEC: I
Ingress protection code: IP41
Mechanical impact resistance: IK02
Operating temperature range, °C: 0…+40 (CEBLED, CLV -25...+50)
Push-in terminal, 4x2x2.5 mm²
Note: supplied with universal sticker kit

Installation:

On the ceiling or wall (mounting brackets included), or suspended (requires an accessory)

Application:

Indoor. For informational purposes when electricity supply fails. Suitable for escape routes and open areas

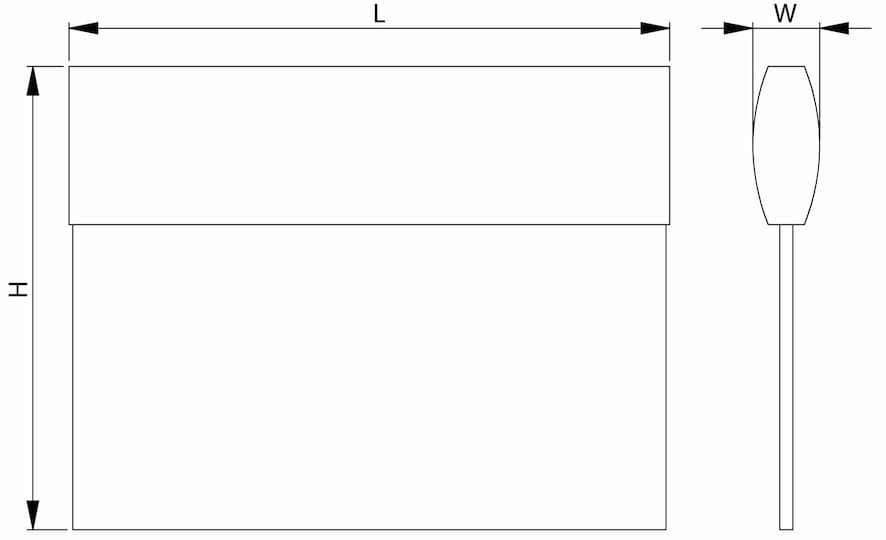

Name	Length, mm	Width, mm	Height, mm	LED lifetime, h	Output, lm	Power, W	CRI (Ra)	CCT, K	Weight, kg
Taurus 1HLED G05 Deluxe	315	48	243	70000/L80B10	30	1	80+	6000	1.25
Taurus 3HLED G07 Deluxe	315	48	243	70000/L80B10	30	1	80+	6000	1.30
Taurus 1PLED G08 Deluxe	315	48	243	70000/L80B10	30	1	80+	6000	1.20
Taurus 3PLED G10 Deluxe	315	48	243	70000/L80B10	30	1	80+	6000	1.25
Taurus 1PLED G08 Deluxe AUT	315	48	243	70000/L80B10	30	1	80+	6000	1.20
Taurus 3PLED G10 Deluxe AUT	315	48	243	70000/L80B10	30	1	80+	6000	1.25
Taurus CEBLED C339 Deluxe	315	48	243	70000/L80B10	30	1	80+	6000	1.25
Taurus 1PLED G08 Deluxe EMS	315	48	243	70000/L80B10	30	1	80+	6000	1.20
Taurus 3PLED G10 Deluxe EMS	315	48	243	70000/L80B10	30	1	80+	6000	1.25
Taurus 1PLED G08 Deluxe DALI	315	48	243	70000/L80B10	30	1	80+	6000	1.20
Taurus 3PLED G10 Deluxe DALI	315	48	243	70000/L80B10	30	1	80+	6000	1.25

Available options:
DALI – Driver with DALI interface
*note – DALI option is applicable for models: G08, G10
TEST – Manual test button
AUT – Autonomous testing system
CEB – Fitting to central battery system
EMS – Fitting to emergency monitoring system
BLACK – Black aluminium body

Accessories:

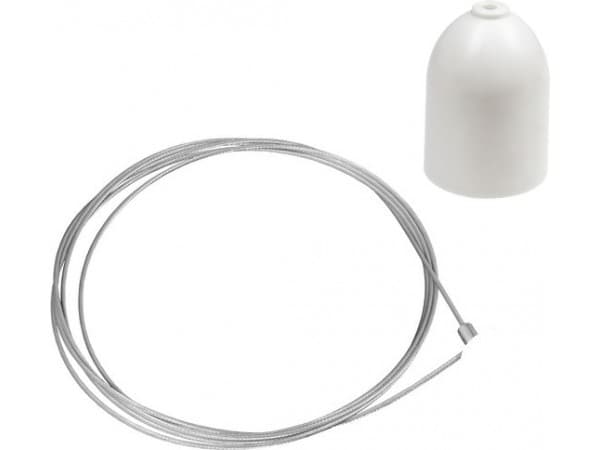

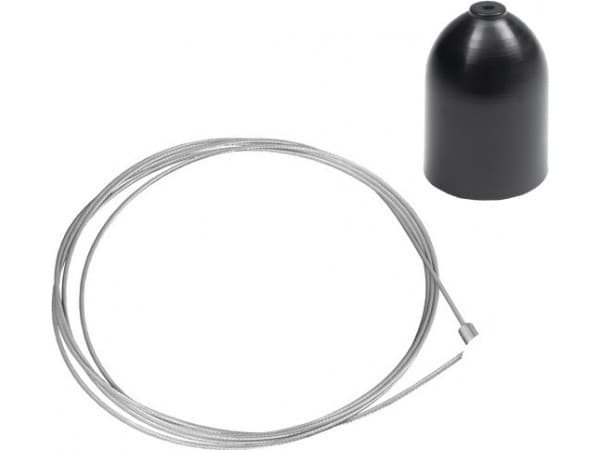

Suspension MTG KIT Nashi/Taurus LED 1.5 (B/W) – Suspension wire set, 1.5 m adjustable (2 pcs), black/white
Suspension MTG KIT Nashi/Taurus LED 3.0 (B/W) – Suspension wire set, 3 m adjustable (2 pcs), black/white
