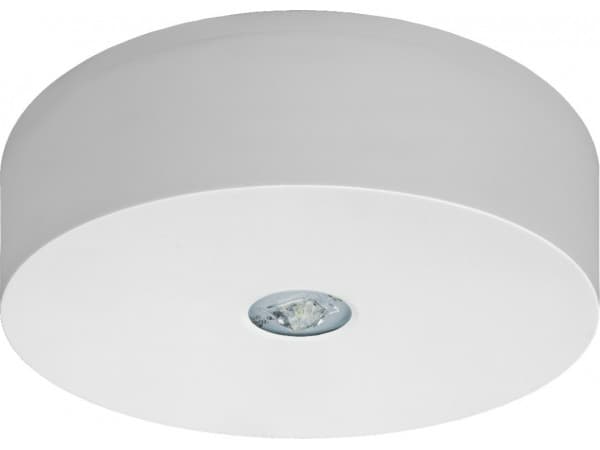

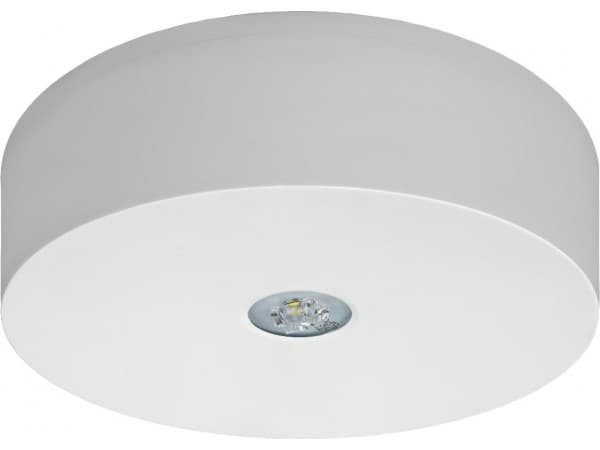

    Ceiling mounted emergency luminaire, Emergency, exit sign Ara S LED IK08 IP65

    Ara S LED IK08 IP65

    LED emergency escape luminaire

    Choose:
    Quantity:
    €
    €
    * Price excl. VAT

    More information:

    Type:
    Surface mounted LED emergency lighting luminaire for both mains and emergency operations. One or three hours emergency operating time with a recharge time of 24 (or 12) hours. Ambient temperature: 0°C to +40°C
    Specification:
    Surface mounted LED emergency escape luminaire
    Light distribution type: direct
    Optical system: lenses
    Housing: polycarbonate
    Colour: white; light grey; black
    Battery charging time: 24 hours (12 hours optional: AUT)
    Battery: NiCd (LiFePO4 optional: AUT), deep discharge protection
    Mains voltage: 220-240V, 50-60Hz
    LED lifetime, h: 70000/L80B10
    SDCM: 3
    Protection class IEC: II
    Ingress protection code: IP65
    Mechanical impact resistance: IK08
    Operating temperature range, °C: 0…+40 (CEBLED, CLV2 -25…+50)
    Push-in terminal, 3x2x2.5 mm²
    Installation:
    On the ceiling or suspended (suspension bracket, wire to be ordered on request)
    Application:
    For emergency escape routes and open areas

    emergency escape luminaire emergency escape luminaire

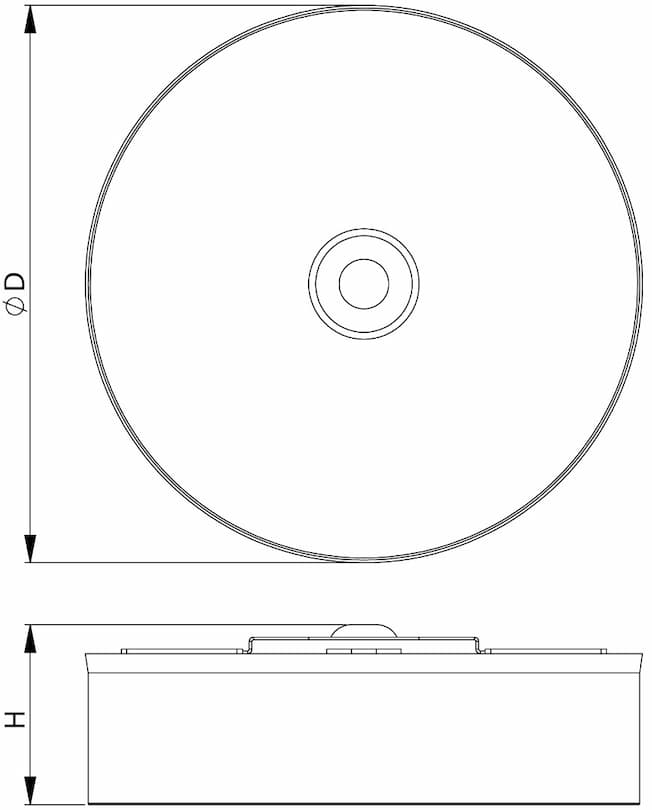

    Name Length, mm Width, mm Height, mm LED lifetime, h Output, lm Power, W CRI (Ra) CCT, K Weight, kg
    Ara S 1HLED C379 LER IP65 202 202 58 70000/L80B10 180 1 80+ 6000 1.35
    Ara S 3HLED C380 LER IP65 202 202 58 70000/L80B10 180 1 80+ 6000 1.40
    Ara S 1PLED C381 LER IP65 202 202 58 70000/L80B10 180 1 80+ 6000 1.35
    Ara S 3PLED C382 LER IP65 202 202 58 70000/L80B10 180 1 80+ 6000 1.40
    Ara S 1PLED C381 LER IP65 AUT 202 202 58 70000/L80B10 185 1 80+ 6000 1.35
    Ara S 3PLED C382 LER IP65 AUT 202 202 58 70000/L80B10 185 1 80+ 6000 1.40
    Ara S CEBLED C383 LER IP65 202 202 58 70000/L80B10 185 1 80+ 6000 1.35
    Ara S 1PLED C381 LER IP65 EMS 202 202 58 70000/L80B10 190 1 80+ 6000 1.35
    Ara S 3PLED C382 LER IP65 EMS 202 202 58 70000/L80B10 190 1 80+ 6000 1.40
    Ara S 1PLED C381 LER IP65 DALI 202 202 58 70000/L80B10 190 1 80+ 6000 1.35
    Ara S 3PLED C382 LER IP65 DALI 202 202 58 70000/L80B10 190 1 80+ 6000 1.40
    Ara S 1HLED C379 LOA IP65 202 202 58 70000/L80B10 180 1 80+ 6000 1.35
    Ara S 3HLED C380 LOA IP65 202 202 58 70000/L80B10 180 1 80+ 6000 1.40
    Ara S 1PLED C381 LOA IP65 202 202 58 70000/L80B10 180 1 80+ 6000 1.35
    Ara S 3PLED C382 LOA IP65 202 202 58 70000/L80B10 180 1 80+ 6000 1.40
    Ara S 1PLED C381 LOA IP65 AUT 202 202 58 70000/L80B10 190 1 80+ 6000 1.35
    Ara S 3PLED C382 LOA IP65 AUT 202 202 58 70000/L80B10 190 1 80+ 6000 1.40
    Ara S CEBLED C383 LOA IP65 202 202 58 70000/L80B10 190 1 80+ 6000 1.35
    Ara S 1PLED C381 LOA IP65 EMS 202 202 58 70000/L80B10 190 1 80+ 6000 1.35
    Ara S 3PLED C382 LOA IP65 EMS 202 202 58 70000/L80B10 190 1 80+ 6000 1.40
    Ara S 1PLED C381 LOA IP65 DALI 202 202 58 70000/L80B10 190 1 80+ 6000 1.35
    Ara S 3PLED C382 LOA IP65 DALI 202 202 58 70000/L80B10 190 1 80+ 6000 1.40
    Ara S 1PLED C386 LER IP65 202 202 58 70000/L80B10 390 3 80+ 6000 1.35
    Ara S 3PLED C387 LER IP65 202 202 58 70000/L80B10 390 3 80+ 6000 1.50
    Ara S 1PLED C386 LER IP65 AUT 202 202 58 70000/L80B10 460 3 80+ 6000 1.35
    Ara S 3PLED C387 LER IP65 AUT 202 202 58 70000/L80B10 460 3 80+ 6000 1.50
    Ara S CEBLED C388 LER IP65 202 202 58 70000/L80B10 460 3 80+ 6000 1.35
    Ara S 1PLED C386 LER IP65 EMS 202 202 58 70000/L80B10 460 3 80+ 6000 1.35
    Ara S 3PLED C387 LER IP65 EMS 202 202 58 70000/L80B10 460 3 80+ 6000 1.50
    Ara S 1PLED C386 LER IP65 DALI 202 202 58 70000/L80B10 460 3 80+ 6000 1.35
    Ara S 3PLED C387 LER IP65 DALI 202 202 58 70000/L80B10 460 3 80+ 6000 1.50
    Ara S 1PLED C386 LOA IP65 202 202 58 70000/L80B10 385 3 80+ 6000 1.35
    Ara S 3PLED C387 LOA IP65 202 202 58 70000/L80B10 385 3 80+ 6000 1.50
    Ara S 1PLED C386 LOA IP65 AUT 202 202 58 70000/L80B10 385 3 80+ 6000 1.35
    Ara S 3PLED C387 LOA IP65 AUT 202 202 58 70000/L80B10 460 3 80+ 6000 1.50
    Ara S CEBLED C388 LOA IP65 202 202 58 70000/L80B10 460 3 80+ 6000 1.35
    Ara S 1PLED C386 LOA IP65 EMS 202 202 58 70000/L80B10 460 3 80+ 6000 1.35
    Ara S 3PLED C387 LOA IP65 EMS 202 202 58 70000/L80B10 460 3 80+ 6000 1.50
    Ara S 1PLED C386 LOA IP65 DALI 202 202 58 70000/L80B10 460 3 80+ 6000 1.35
    Ara S 3PLED C387 LOA IP65 DALI 202 202 58 70000/L80B10 460 3 80+ 6000 1.50
    Ara S 1PLED C391 LER IP65 202 202 58 70000/L80B10 790 6 80+ 6000 1.50
    Ara S 3PLED C392 LER IP65 202 202 58 70000/L80B10 790 6 80+ 6000 1.75
    Ara S 1PLED C391 LER IP65 AUT 202 202 58 70000/L80B10 790 6 80+ 6000 1.50
    Ara S 3PLED C392 LER IP65 AUT 202 202 58 70000/L80B10 790 6 80+ 6000 1.75
    Ara S CEBLED C393 LER IP65 202 202 58 70000/L80B10 790 6 80+ 6000 1.50
    Ara S 1PLED C391 LER IP65 EMS 202 202 58 70000/L80B10 790 6 80+ 6000 1.50
    Ara S 3PLED C392 LER IP65 EMS 202 202 58 70000/L80B10 790 6 80+ 6000 1.75
    Ara S 1PLED C391 LER IP65 DALI 202 202 58 70000/L80B10 790 6 80+ 6000 1.50
    Ara S 3PLED C392 LER IP65 DALI 202 202 58 70000/L80B10 790 6 80+ 6000 1.75
    Ara S CLV2 U70 LER IP65 202 202 58 70000/L80B10 790 6 80+ 6000 1.50
    Ara S 1PLED C391 LOA IP65 202 202 58 70000/L80B10 780 6 80+ 6000 1.50
    Ara S 3PLED C392 LOA IP65 202 202 58 70000/L80B10 780 6 80+ 6000 1.75
    Ara S 1PLED C391 LOA IP65 AUT 202 202 58 70000/L80B10 780 6 80+ 6000 1.50
    Ara S 3PLED C392 LOA IP65 AUT 202 202 58 70000/L80B10 780 6 80+ 6000 1.75
    Ara S CEBLED C393 LOA IP65 202 202 58 70000/L80B10 780 6 80+ 6000 1.50
    Ara S 1PLED C391 LOA IP65 EMS 202 202 58 70000/L80B10 780 6 80+ 6000 1.50
    Ara S 3PLED C392 LOA IP65 EMS 202 202 58 70000/L80B10 780 6 80+ 6000 1.75
    Ara S 1PLED C391 LOA IP65 DALI 202 202 58 70000/L80B10 780 6 80+ 6000 1.50
    Ara S 3PLED C392 LOA IP65 DALI 202 202 58 70000/L80B10 780 6 80+ 6000 1.75
    Ara S CLV2 U70 LOA IP65 202 202 58 70000/L80B10 780 6 80+ 6000 1.50



    Available options:
    DALI – Driver with DALI interface
              *note – DALI option is applicable for models: C381, C382, C386, C387, C391, C392
    TEST – Manual test button
    TRACK – Luminaire prepared for track system installations
              *note – only for non-maintained operation
              *note – for TRACK option ingress protection IP20
    AUT – Autonomous testing system
              *note – AUT option is applicable for models: C381, C382, C386, C387, C391, C392
    CEB – Fitting to central battery system
    CLV2 – Fitting to low voltage central 48V battery system CEBLV
              *note – only for U70 model
    EMS – Fitting to emergency monitoring system
              *note – EMS option is applicable for models: C381, C382, C386, C387, C391, C392
    LGREY – Light grey thermoplastic body
    BLACK – Black thermoplastic body
    tmin-25 – Suitable for low temperatures: -25…+40°C

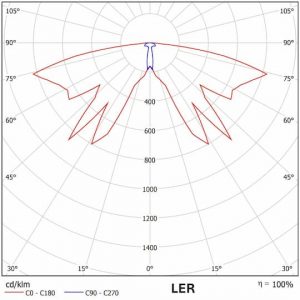

    LER – Lens for escape route
    LEW – Lens for escape route (wide corridor)

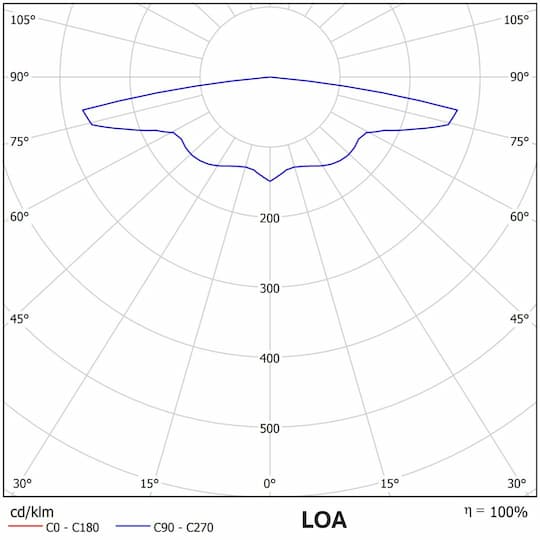

    LOA – Lens for open areas
    LOU – Lens for open areas (high ceiling)
    LOS – Lens with asymmetric beam

    emergency escape luminaire emergency escape luminaire
