esviesa.lt | Helm B LED IK08 IP65

LED emergency luminaire

More information:

Type:

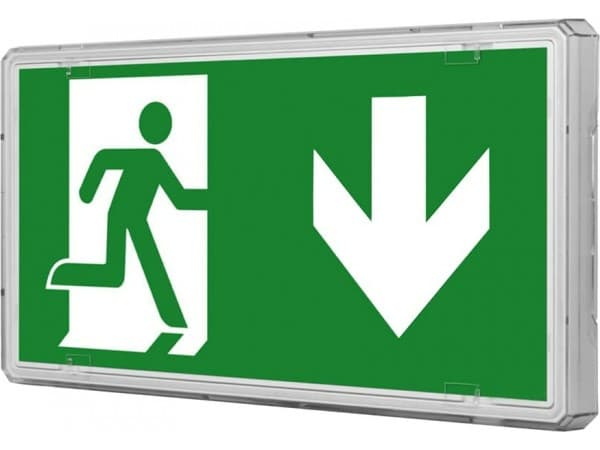

Surface mounted LED emergency exit sign. One or three hour emergency operating time with a recharge time of 24 (or 12) hours. Ambient temperature: 0°C to +40°C. Recognition distance 30 m

Specification:

Surface mounted LED emergency exit sign / escape luminaire
Light distribution type: direct
Optical system: clear polycarbonate diffuser, impact resistant
Housing: polycarbonate
Colour: white; light grey; black
Battery charging time: 24 hours (12 hours optional: AUT)
Battery: NiCd (LiFePO4 optional: AUT), deep discharge protection
Recognition distance: Helm S: 20 meters; Helm: 25 meters; Helm B: 30 meters
Mains voltage: 220-240V, 50-60Hz
LED lifetime, h: 70000/L80B10
SDCM: 3
Protection class IEC: II
Ingress protection code: IP65
Mechanical impact resistance: IK08
Operating temperature range, °C: 0…+40 (CEBLED -25...+50)
Push-in terminal, 3x2x2.5 mm²
Note: supplied with universal sticker kit

Installation:

On the wall or ceiling, in ceilings with cut-out openings (mounting frame to be ordered separately)

Application:

Indoor. For informational purposes when electricity supply fails. Suitable for escape routes and open areas

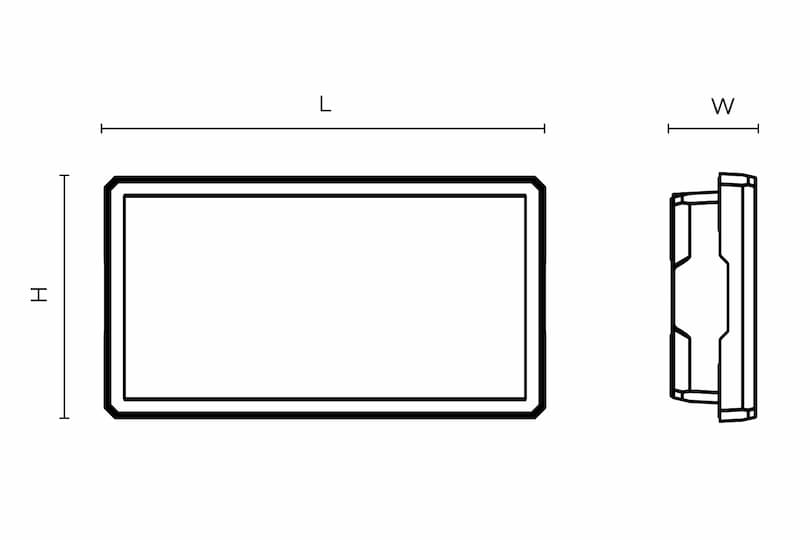

Name	Length, mm	Width, mm	Height, mm	LED lifetime, h	Output, lm	Power, W	CRI (Ra)	CCT, K	Weight, kg
Helm B 1HLED U60	332	52	178	70000/L80B10	170	1	80+	6000	0.45
Helm B 3HLED U61	332	52	178	70000/L80B10	170	1	80+	6000	0.55
Helm B 1PLED U62	332	52	178	70000/L80B10	170	1	80+	6000	0.45
Helm B 3PLED U63	332	52	178	70000/L80B10	170	1	80+	6000	0.55
Helm B 1PLED U62 AUT	332	52	178	70000/L80B10	180	1	80+	6000	0.45
Helm B 3PLED U63 AUT	332	52	178	70000/L80B10	180	1	80+	6000	0.45
Helm B CEBLED U64	332	52	178	70000/L80B10	180	1	80+	6000	0.55
Helm B 1PLED U62 EMS	332	52	178	70000/L80B10	180	1	80+	6000	0.45
Helm B 3PLED U63 EMS	332	52	178	70000/L80B10	180	1	80+	6000	0.55
Helm B 1PLED U62 DALI	332	52	178	70000/L80B10	180	1	80+	6000	0.45
Helm B 3PLED U63 DALI	332	52	178	70000/L80B10	180	1	80+	6000	0.45
Helm B CLV2LED U64	332	52	178	70000/L80B10	180	1	80+	6000	0.45
Helm B 1PLED U65	332	52	178	70000/L80B10	430	3	80+	6000	0.45
Helm B 3PLED U66	332	52	178	70000/L80B10	430	3	80+	6000	0.55
Helm B 1PLED U65 AUT	332	52	178	70000/L80B10	455	3	80+	6000	0.45
Helm B 3PLED U66 AUT	332	52	178	70000/L80B10	455	3	80+	6000	0.55
Helm B CEBLED U67	332	52	178	70000/L80B10	455	3	80+	6000	0.45
Helm B 1PLED U65 EMS	332	52	178	70000/L80B10	455	3	80+	6000	0.45
Helm B 3PLED U66 EMS	332	52	178	70000/L80B10	455	3	80+	6000	0.55
Helm B 1PLED U65 DALI	332	52	178	70000/L80B10	455	3	80+	6000	0.45
Helm B 3PLED U66 DALI	332	52	178	70000/L80B10	455	3	80+	6000	0.55
Helm B CLV2LED U68	332	52	178	70000/L80B10	455	3	80+	6000	0.55

Available options:
DALI – Driver with DALI interface
TEST – Manual test button
AUT – Autonomous testing system
CEB – Fitting to central battery system
CLV2 – Fitting to low voltage central 48V battery system CEBLV
EMS – Fitting to emergency monitoring system
tmin-25 – Suitable for low temperatures -25…+40°C
LGREY – Light grey thermoplastic body
BLACK – Black thermoplastic body

Accessories:
Helm B LED Exit blade – PMMA exit blade with mounting springs
Helm B LED Recessed MTG kit – Recessed mounting kit for Helm LED series
WALL MTG bracket Helm B LED – Bracket for Helm B LED luminaire installation on the wall, white, 1 pcs
Pendant MTG kit Helm B LED – Bracket for Helm B LED pendant installation, 1.0 m, white, 1 pcs
