esviesa.lt | Helm LED IK08 IP65

LED emergency luminaire

More information:

Type:

Surface mounted LED emergency exit sign. One or three hour emergency operating time with a recharge time of 24 (or 12) hours. Ambient temperature: 0°C to +40°C. Recognition distance 25 m

Specification:

Surface mounted LED emergency exit sign / escape luminaire
Light distribution type: direct
Optical system: clear polycarbonate diffuser, impact resistant
Housing: polycarbonate
Colour: white; light grey; black
Battery charging time: 24 hours (12 hours optional: AUT)
Battery: NiCd (LiFePO4 optional: AUT), deep discharge protection
Recognition distance: Helm S: 20 meters; Helm: 25 meters; Helm B: 30 meters
Mains voltage: 220-240V, 50-60Hz
LED lifetime, h: 70000/L80B10
SDCM: 3
Protection class IEC: II
Ingress protection code: IP65
Mechanical impact resistance: IK08
Operating temperature range, °C: 0…+40 (CEBLED -25...+50)
Push-in terminal, 3x2x2.5 mm²
Note: supplied with universal sticker kit

Installation:

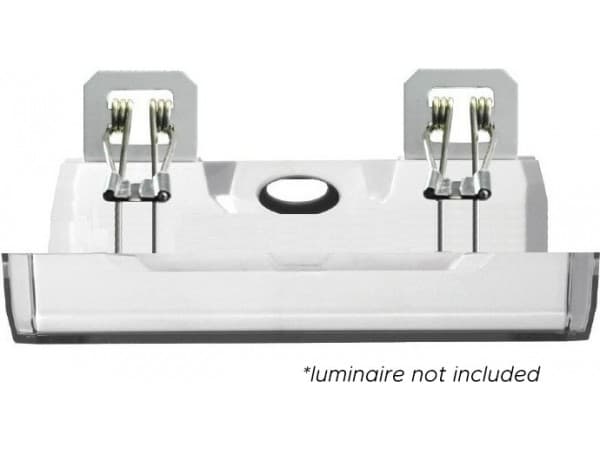

On the wall or ceiling, in ceilings with cut-out openings (mounting frame to be ordered separately)

Application:

Indoor. For informational purposes when electricity supply fails. Suitable for escape routes and open areas

Name	Length, mm	Width, mm	Height, mm	LED lifetime, h	Output, lm	Power, W	CRI (Ra)	CCT, K	Weight, kg
Helm 1HLED C356	276	44	143	70000/L80B10	170	1	80+	6000	0.5
Helm 3HLED C357	276	44	143	70000/L80B10	170	1	80+	6000	0.6
Helm 1PLED C358	276	44	143	70000/L80B10	170	1	80+	6000	0.5
Helm 3PLED C359	276	44	143	70000/L80B10	170	1	80+	6000	0.6
Helm 1PLED C358 AUT	276	44	143	70000/L80B10	175	1	80+	6000	0.5
Helm 3PLED C359 AUT	276	44	143	70000/L80B10	175	1	80+	6000	0.6
Helm CEBLED C362	276	44	143	70000/L80B10	175	1	80+	6000	0.5
Helm 1PLED C358 EMS	276	44	143	70000/L80B10	175	1	80+	6000	0.5
Helm 3PLED C359 EMS	276	44	143	70000/L80B10	175	1	80+	6000	0.6
Helm 1PLED C358 DALI	276	44	143	70000/L80B10	175	1	80+	6000	0.5
Helm 3PLED C359 DALI	276	44	143	70000/L80B10	175	1	80+	6000	0.6
Helm 1PLED C360	276	44	143	70000/L80B10	395	3	80+	6000	0.6
Helm 3PLED C361	276	44	143	70000/L80B10	395	3	80+	6000	0.7
Helm 1PLED C360 AUT	276	44	143	70000/L80B10	410	3	80+	6000	0.5
Helm 3PLED C361 AUT	276	44	143	70000/L80B10	410	3	80+	6000	0.6
Helm CEBLED C363	276	44	143	70000/L80B10	410	3	80+	6000	0.6
Helm 1PLED C360 EMS	276	44	143	70000/L80B10	410	3	80+	6000	0.5
Helm 3PLED C361 EMS	276	44	143	70000/L80B10	410	3	80+	6000	0.6
Helm 1PLED C360 DALI	276	44	143	70000/L80B10	410	3	80+	6000	0.5
Helm 3PLED C361 DALI	276	44	143	70000/L80B10	410	3	80+	6000	0.6

Available options:
DALI – Driver with DALI interface
*note – DALI option is applicable for models: C358, C359, C360, C361
TEST – Manual test button
AUT – Autonomous testing system
CEB – Fitting to central battery system
EMS – Fitting to emergency monitoring system
tmin-25 – Suitable for low temperatures -25…+40°C
LGREY – Light grey thermoplastic body
BLACK – Black thermoplastic body
