esviesa.lt | Nashi R LED IK02 IP44

LED emergency luminaire

More information:

Type:

Recessed LED emergency exit sign. One or three hour emergency operating time with a recharge time of 24 (or 12) hours. Ambient temperature: 0°C to +40°C. Recognition distance 25 m

Specification:

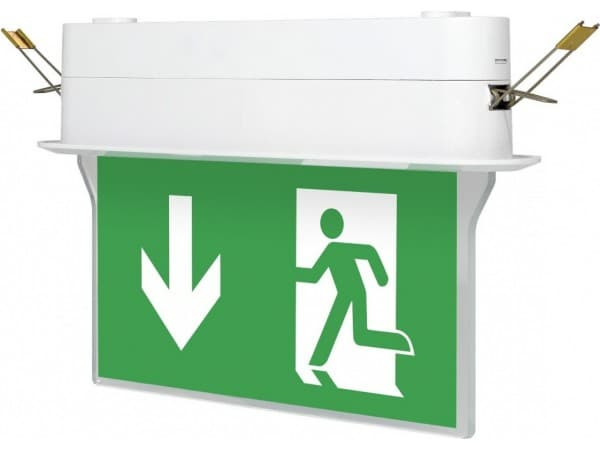

Recessed mounted double-sided LED emergency exit sign
Light distribution type: omnidirectional
Optical system: clear PMMA diffuser
Housing: polycarbonate
Colour: white; light grey; black
Battery charging time: 24 hours (12 hours optional: AUT)
Battery: NiCd (LiFePO4 optional: AUT), deep discharge protection
Recognition distance: 25 meters
Mains voltage: 220-240V, 50-60Hz
LED lifetime, h: 70000/L80B10
SDCM: 3
Protection class IEC: II
Ingress protection code: IP44
Mechanical impact resistance: IK02
Operating temperature range, °C: 0…+40 (CEBLED -25...+50)
Screw terminal, 3x2x2.5 mm²
Note: supplied with universal sticker kit

Installation:

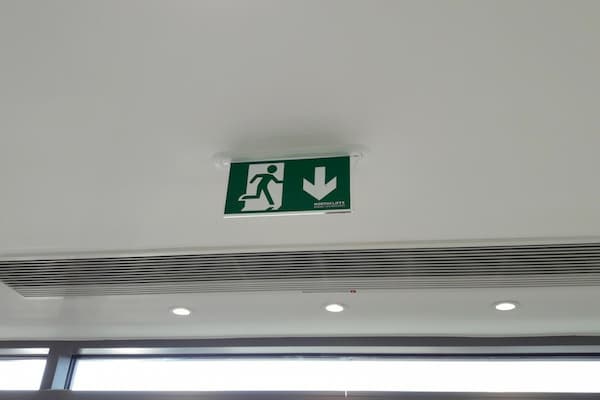

In ceilings with cut-out openings (mounting brackets included)

Application:

Indoor. For informational purposes when electricity supply fails. Suitable for escape routes and open areas

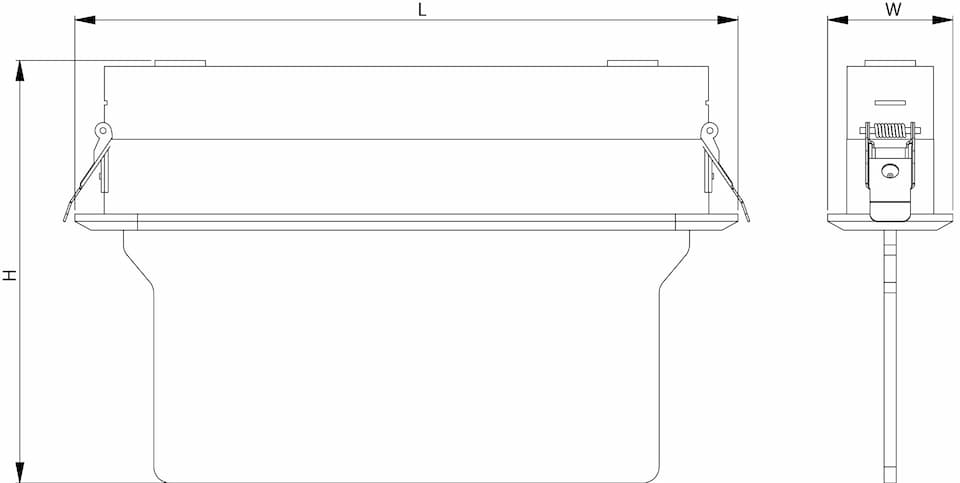

Name	Length, mm	Width, mm	Height, mm	LED lifetime, h	Output, lm	Power, W	CRI (Ra)	CCT, K	Weight, kg
Nashi R 1HLED C436	328	62	206	70000/L80B10	155	1	80+	6000	1.00
Nashi R 3HLED C437	328	62	206	70000/L80B10	155	1	80+	6000	1.20
Nashi R 1PLED C438	328	62	206	70000/L80B10	155	1	80+	6000	1.15
Nashi R 3PLED C439	328	62	206	70000/L80B10	155	1	80+	6000	1.20
Nashi R 3PLED C439 TEST	328	62	206	70000/L80B10	155	1	80+	6000	1.20
Nashi R 3PLED C439 AUT	328	62	206	70000/L80B10	165	1	80+	6000	1.20
Nashi R CEBLED C440	328	62	206	70000/L80B10	165	1	80+	6000	1.00
Nashi R 1PLED C438 EMS	328	62	206	70000/L80B10	165	1	80+	6000	1.15
Nashi R 3PLED C439 EMS	328	62	206	70000/L80B10	165	1	80+	6000	1.20
Nashi R 1PLED C438 DALI	328	62	206	70000/L80B10	165	1	80+	6000	1.15
Nashi R 3PLED C439 DALI	328	62	206	70000/L80B10	165	1	80+	6000	1.20

Available options:
DALI – Driver with DALI interface
*note – DALI option is applicable for models: C438, C439
TEST – Manual test button
AUT – Autonomous testing system
CEB – Fitting to central battery system
EMS – Fitting to emergency monitoring system
LGREY – Light grey thermoplastic body
BLACK – Black thermoplastic body
