esviesa.lt | Norther LED IK10 IP66

LED emergency escape luminaire

More information:

Type:

A range of IK10 IP66 LED emergency lighting luminaires for outdoor applications. Operations: mains and emergency. One or three hour emergency operating time.
Ambient temperature: 0°C to +40°C

Specification:

Surface mounted LED emergency escape luminaire
Light distribution type: direct
Optical system: tempered glass diffuser, impact resistant
Housing: stainless steel
Colour: white, RAL9003; light grey; black
Battery charging time: 24 hours (12 hours optional: AUT)
Battery: NiCd (LiFePO4 optional: AUT), deep discharge protection
Mains voltage: 220-240V, 50-60Hz
LED lifetime, h: 70000/L80B10
SDCM: 3
Protection class IEC: I
Ingress protection code: IP66
Mechanical impact resistance: IK10
Operating temperature range, °C: 0…+40 (-25...+50 CEBLED)
Push-in terminal, 4x2x2.5 mm²

Installation:

On the wall

Application:

For emergency escape routes and open areas

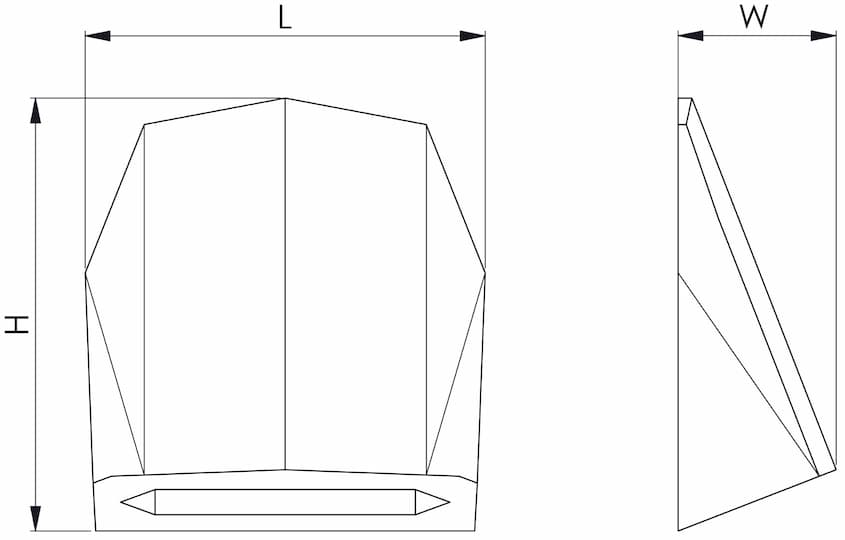

Name	Length, mm	Width, mm	Height, mm	LED lifetime, h	Output, lm	Power, W	CRI (Ra)	CCT, K	Weight, kg
Norther 1PLED C334	222	77	227	70000/L80B10	390	3	80+	6000	1.50
Norther 3PLED C335	222	77	227	70000/L80B10	390	3	80+	6000	1.65
Norther 1PLED C334 AUT	222	77	227	70000/L80B10	460	3	80+	6000	1.50
Norther 3PLED C335 AUT	222	77	227	70000/L80B10	460	3	80+	6000	1.65
Norther CEBLED C336	222	77	227	70000/L80B10	460	3	80+	6000	1.50
Norther 1PLED C334 EMS	222	77	227	70000/L80B10	460	3	80+	6000	1.50
Norther 3PLED C335 EMS	222	77	227	70000/L80B10	460	3	80+	6000	1.65
Norther 1PLED C334 DALI	222	77	227	70000/L80B10	460	3	80+	6000	1.50
Norther 3PLED C335 DALI	222	77	227	70000/L80B10	460	3	80+	6000	1.65

Options available on request:
DALI – Driver with DALI interface
*note – DALI option is not compatible with CEBLED option model: C336
TEST – Manual test button
AUT – Autonomous testing system
CEB – Fitting to central battery system
EMS – Fitting to emergency monitoring system
tmin-25 – Suitable for low temperatures -25…+40°C
LGREY – Light grey stainless steel body
BLACK – Black stainless steel body
