esviesa.lt | Lepus W LED IK05 IP40

LED emergency luminaire

More information:

Type:

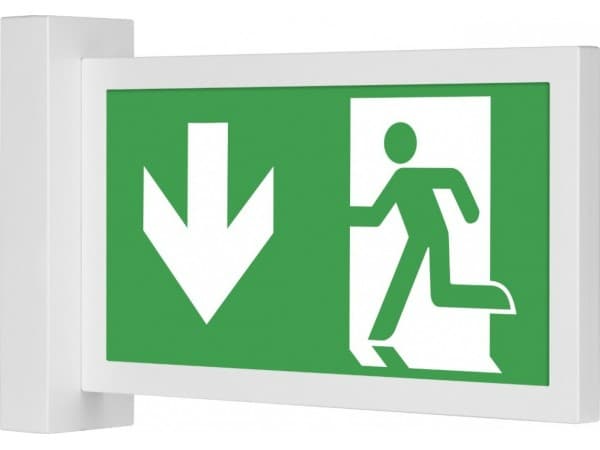

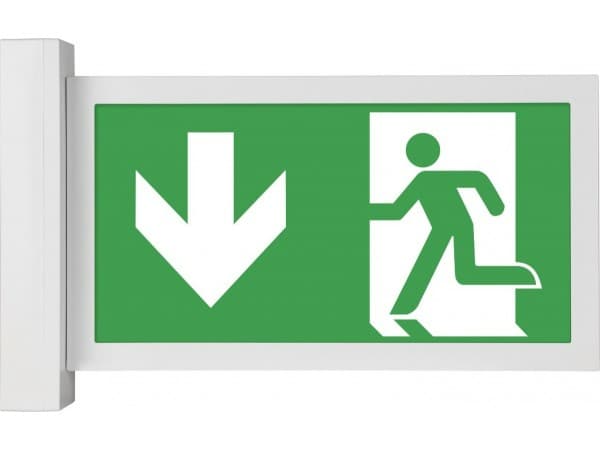

Wall mounted double-sided LED emergency exit sign. One or three hour emergency operating time with a recharge time of 24 (or 12) hours. Ambient temperature: 0°C to +40°C. Recognition distance 30 m

Specification:

Wall-mounted double-sided LED emergency exit sign
Light distribution type: omnidirectional
Optical system: clear PMMA diffuser
Housing: polycarbonate
Colour: white; light grey; black
Battery charging time: 24 hours (12 hours optional: AUT)
Battery: NiCd (LiFePO4 optional: AUT), deep discharge protection
Recognition distance: 30 meters
Mains voltage: 220-240V, 50-60Hz
LED lifetime, h: 70000/L80B10
SDCM: 3
Protection class IEC: II
Ingress protection code: IP40
Mechanical impact resistance: IK05
Operating temperature range, °C: 0…+40 (CEBLED -25...+50)
Push-in terminal, 3x2x2.5 mm²
Note: supplied with universal sticker kit

Installation:

On the wall

Application:

Indoor. For informational purposes when electricity supply fails. Suitable for escape routes and open areas

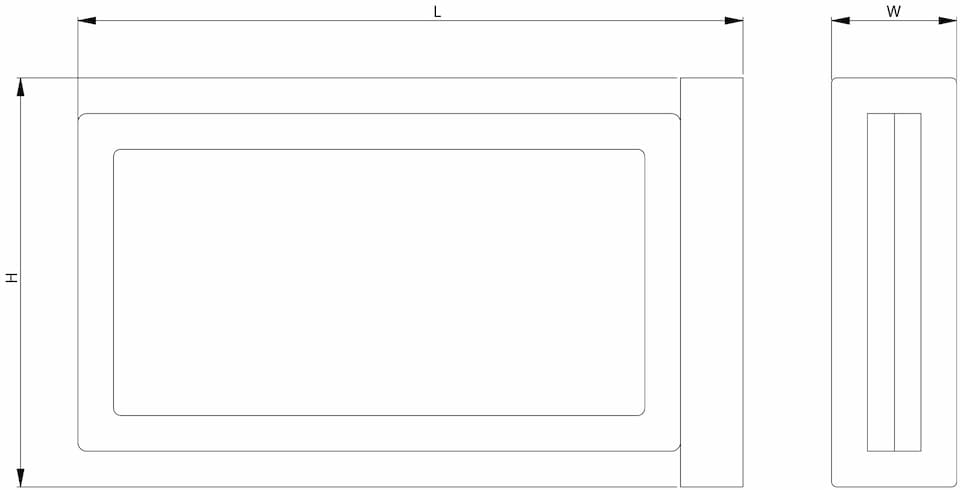

Name	Length, mm	Width, mm	Height, mm	LED lifetime, h	Output, lm	Power, W	CRI (Ra)	CCT, K	Weight, kg
Lepus W 1PLED G066	375	72	232	70000/L80B10		1	80+	6000	1.4
Lepus W 3PLED G067	375	72	232	70000/L80B10		1	80+	6000	1.4
Lepus W 1PLED G066 AUT	375	72	232	70000/L80B10		1	80+	6000	1.4
Lepus W 3PLED G067 AUT	375	72	232	70000/L80B10		1	80+	6000	1.4
Lepus W CEBLED G068	375	72	232	70000/L80B10		1	80+	6000	1.4
Lepus W 1PLED G066 EMS	375	72	232	70000/L80B10		1	80+	6000	1.4
Lepus W 3PLED G067 EMS	375	72	232	70000/L80B10		1	80+	6000	1.4
Lepus W 1PLED G066 DALI	375	72	232	70000/L80B10		1	80+	6000	1.4
Lepus W 3PLED G067 DALI	375	72	232	70000/L80B10		1	80+	6000	1.4
Lepus W 1PLED G079 2CLR AUT	375	72	232	70000/L80B10	80	3	80+	6000	1.4
Lepus W 3PLED G080 2CLR AUT	375	72	232	70000/L80B10	80	3	80+	6000	1.4
Lepus W CEBLED G081 2CLR	375	72	232	70000/L80B10	80	3	80+	6000	1.4
Lepus W 1PLED G079 2CLR EMS	375	72	232	70000/L80B10	80	3	80+	6000	1.4
Lepus W 3PLED G080 2CLR EMS	375	72	232	70000/L80B10	80	3	80+	6000	1.4
Lepus W 1PLED G079 2CLR DALI	375	72	232	70000/L80B10	80	3	80+	6000	1.4
Lepus W 3PLED G080 2CLR DALI	375	72	232	70000/L80B10	80	3	80+	6000	1.4

Available options:
DALI – Driver with DALI interface
*note – DALI option is applicable for models: G066, G067
TEST – Manual test button
AUT – Autonomous testing system
CEB – Fitting to central battery system
EMS – Fitting to emergency monitoring system
LGREY – Light grey thermoplastic body
BLACK – Black thermoplastic body
