esviesa.lt | Leporis U LED IK08 IP40

LED emergency luminaire

More information:

Type:

Suspended double-sided LED emergency exit sign. One or three hour emergency operating time with a recharge time of 24 (or 12) hours. Ambient temperature: 0°C to +40°C. Recognition distance 30 m

Specification:

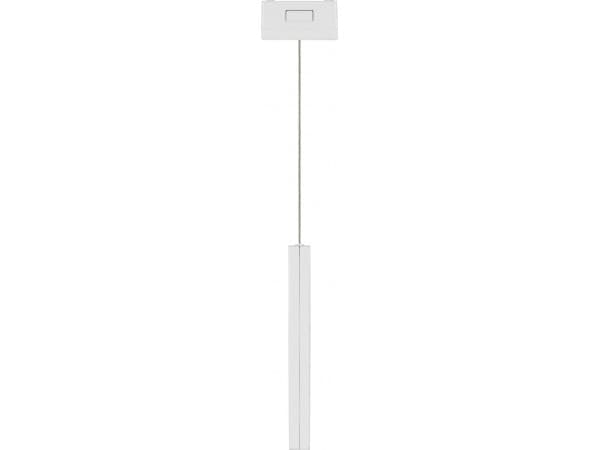

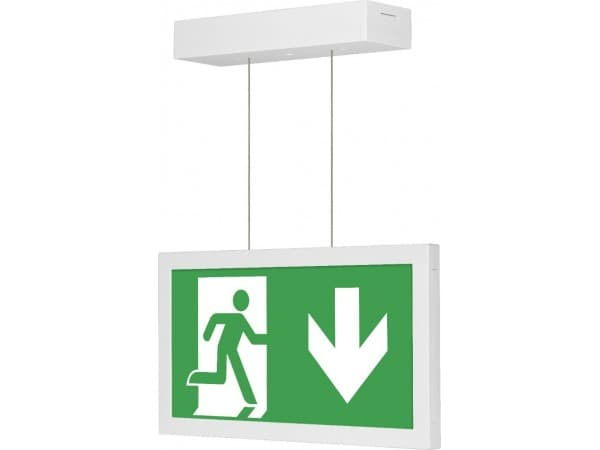

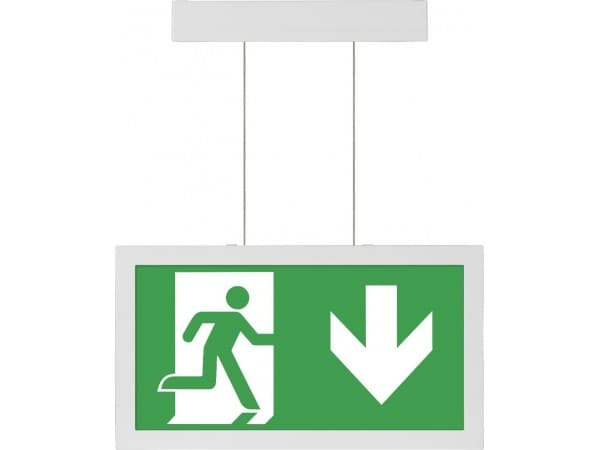

Suspended double-sided LED emergency exit sign
Light distribution type: omnidirectional
Optical system: clear PMMA diffuser
Housing: polycarbonate
Colour: white; light grey; black
Battery charging time: 24 hours (12 hours optional: AUT)
Battery: NiCd (LiFePO4 optional: AUT), deep discharge protection
Recognition distance: 30 meters
Mains voltage: 220-240V, 50-60Hz (CEBLED: 220-240VAC, 50/60Hz; 176-275VDC)
LED lifetime, h: 70000/L80B10
SDCM: 3
Protection class IEC: II
Ingress protection code: IP40
Mechanical impact resistance: IK08
Operating temperature range, °C: 0…+40 (CEBLED: 0...+50)
Push-in terminal, 3x2x2.5 mm² (CEBLED: Push-in terminal, 2x2x2.5 mm²)
Note: supplied with universal sticker kit

Installation:

On to the ceiling (suspended)

Application:

Indoor. For informational purposes when electricity supply fails. Suitable for escape routes and open areas

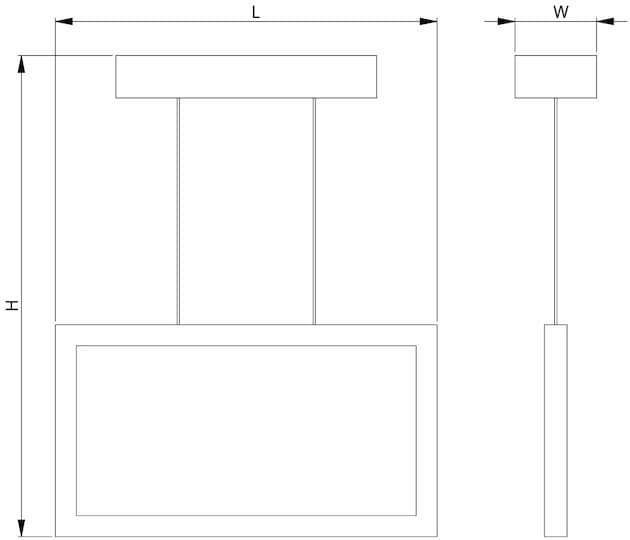

Name	Length, mm	Width, mm	Height, mm	LED lifetime, h	Output, lm	Power, W	CRI (Ra)	CCT, K	Weight, kg
Leporis U 1PLED G076	224	72	337	70000/L80B10		1	80+	6000	1.4
Leporis U 3PLED G077	224	72	337	70000/L80B10		1	80+	6000	1.4
Leporis U 1PLED G076 AUT	224	72	337	70000/L80B10		1	80+	6000	1.4
Leporis U 3PLED G077 AUT	224	72	337	70000/L80B10		1	80+	6000	1.4
Leporis U CEBLED G078	224	72	337	70000/L80B10		1	80+	6000	1.5
Leporis U 1PLED G076 EMS	224	72	337	70000/L80B10		1	80+	6000	1.4
Leporis U 3PLED G077 EMS	224	72	337	70000/L80B10		1	80+	6000	1.4
Leporis U 1PLED G076 DALI	224	72	337	70000/L80B10		1	80+	6000	1.4
Leporis U 3PLED G077 DALI	224	72	337	70000/L80B10		1	80+	6000	1.4
Leporis U 1PLED G085 2CLR AUT	224	72	337	70000/L80B10	80	3	80+	6000	1.4
Leporis U 3PLED G086 2CLR AUT	224	72	337	70000/L80B10	80	3	80+	6000	1.4
Leporis U CEBLED G087 2CLR	224	72	337	70000/L80B10	80	3	80+	6000	1.5
Leporis U 1PLED G085 2CLR EMS	224	72	337	70000/L80B10	80	3	80+	6000	1.4
Leporis U 3PLED G086 2CLR EMS	224	72	337	70000/L80B10	80	3	80+	6000	1.4
Leporis U 1PLED G085 2CLR DALI	224	72	337	70000/L80B10	80	3	80+	6000	1.4
Leporis U 3PLED G086 2CLR DALI	224	72	337	70000/L80B10	80	3	80+	6000	1.4

Available options:
DALI – Driver with DALI interface
*note – DALI option is applicable for models: G076, G077
TEST – Manual test button
AUT – Autonomous testing system
CEB – Fitting to central battery system
EMS – Fitting to emergency monitoring system
LGREY – Light grey thermoplastic body
BLACK – Black thermoplastic body
